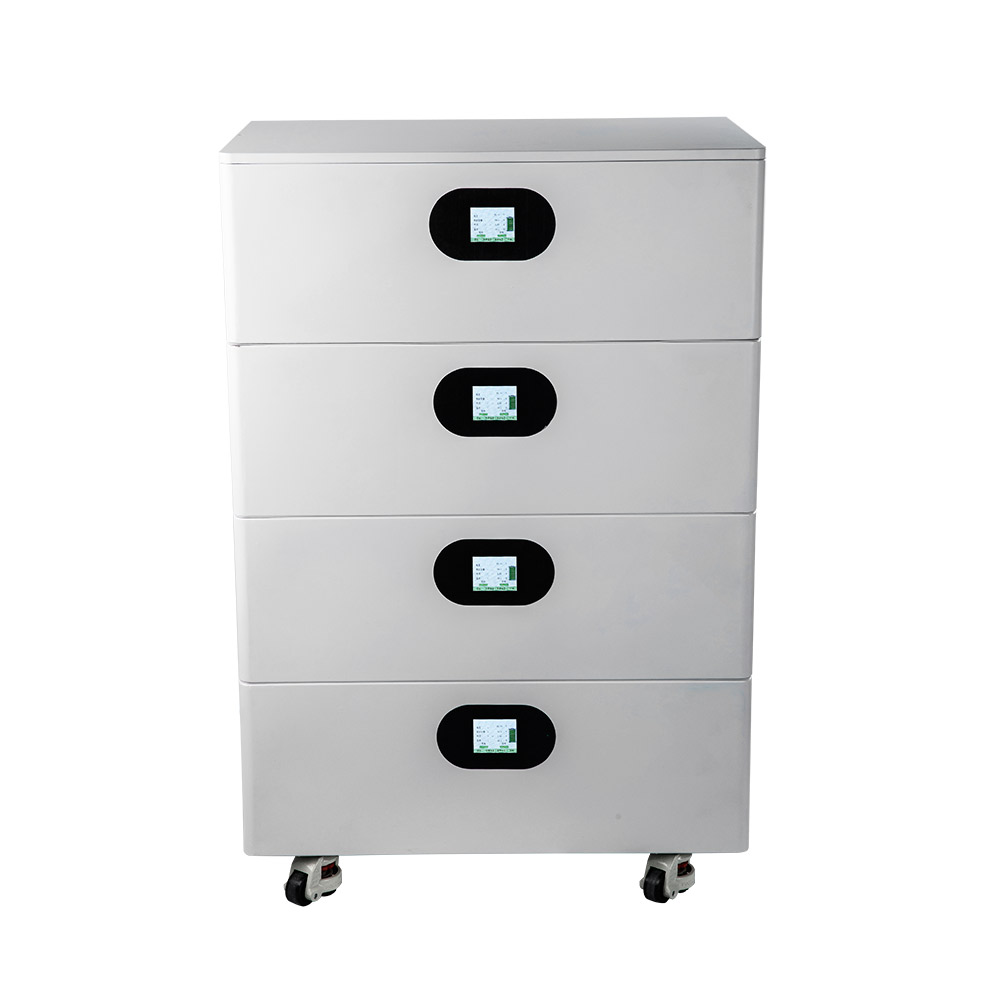

YF-ESS-60KWH 60kWh Lithium Battery Storage System

Key Features of the storage system

1. 60kWh modular design, scalable up to 30kWh via parallel connection for flexible energy needs.

2.LiFePO4 battery cells with 6000+ cycles (80% DoD) and 10-year warranty for long-term reliability.

3.IP65 protection, explosion-proof design, and wide operating temperature (-20°C~55°C).

Apllication

1.Store solar energy for nighttime use, reducing grid dependence.

2.Emergency backup for hospitals, shops to prevent downtime

3.Off-grid power solutions for remote areas with solar integration.

4.Charge during low tariff periods, discharge at peak times to cut costs.

Advantages

1.Energy Saving: 95% round-trip efficiency minimizes waste.

2.Plug-and-Play: Pre-installed terminals enable 2-hour setup.

3.Eco-Friendly: Zero emissions, compatible with renewables.

ModelParameterProduct NameSpecificationdescriptionUnit
YF-ESS-60KWHAC input voltage range AC185-265V50/60Hz

Temperature protection ≤80℃

Overload protection ≤10500W

Output voltage/frequency 220V/50Hz

Output power Rated 10000W

Output waveform Sine wave

Built-in charging current 10-80A

UPS response time ≤5ms

Inverter layer weight KG 31

Inverter layer size L*W*H 750*450*190mm

Single layer battery weight KG 110

Single layer battery size L*W*H 750*450*250mm

4-layer battery size L*W*H 750*450*1125mm

4-layer battery weight KG 453

Including packaging weight KG 482

4-layer battery + inverter size 750*450*1305

Inverter layer

Stackable inverter 10KW

MPPT 100A*2

10000W
Battery layer*1
Stackable inverter single layer15KWH15000Wh
Battery layer*2Stackable inverter 15KWH*230000Wh
Battery layer*3Stackable inverter 15KWH*3

45000

Wh
Battery layer*4Stackable inverter 15KWH*460000Wh

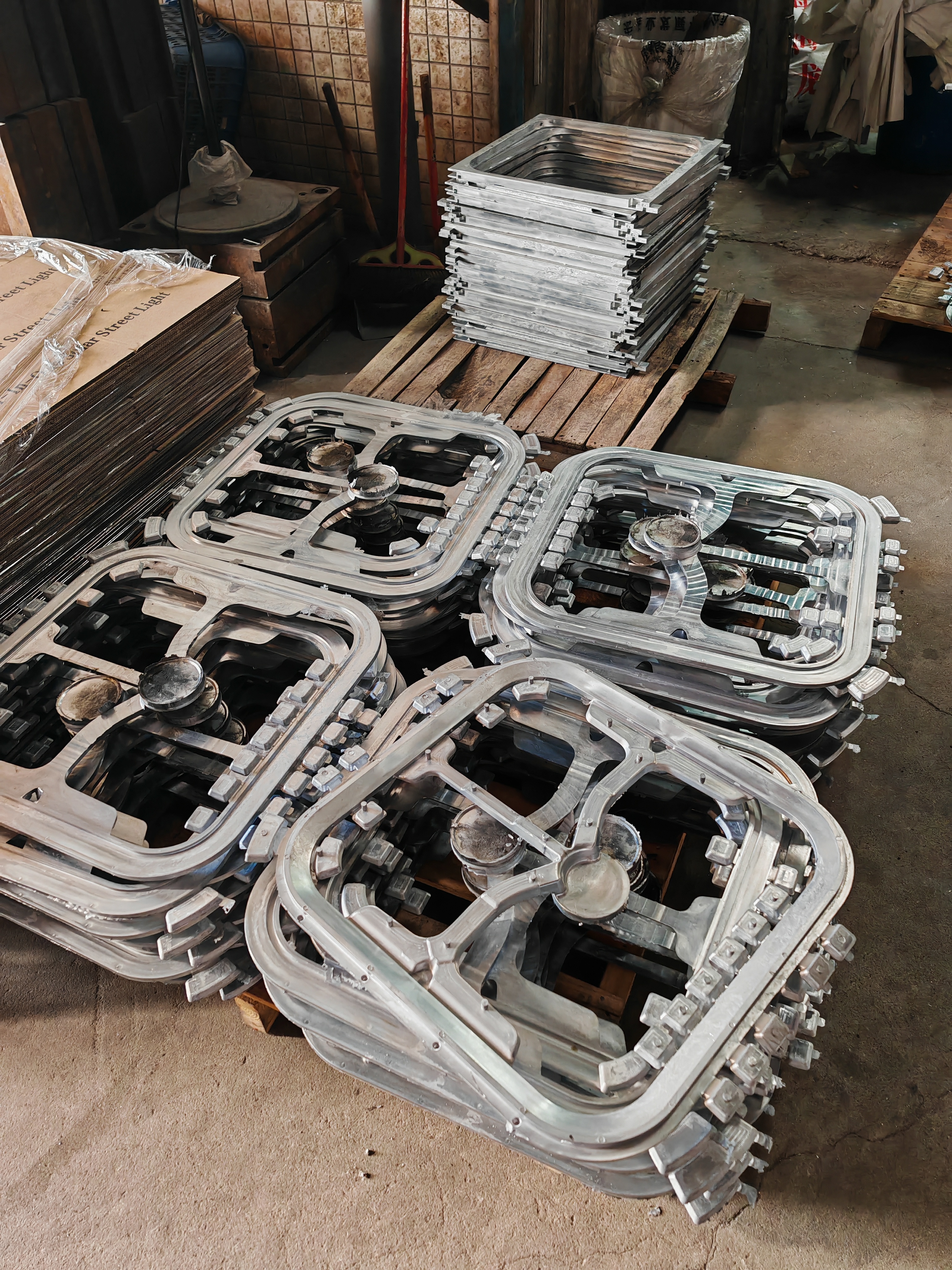

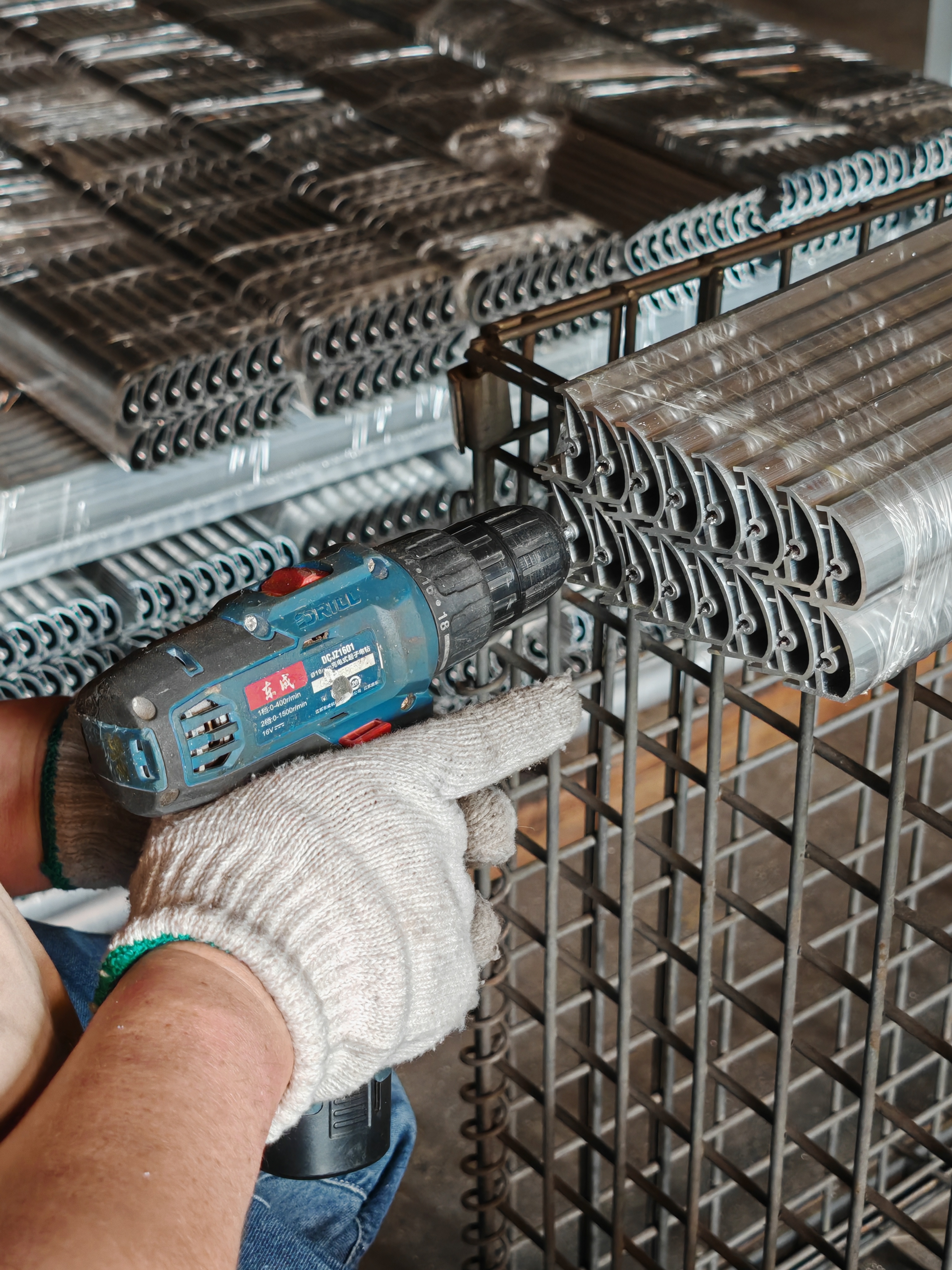

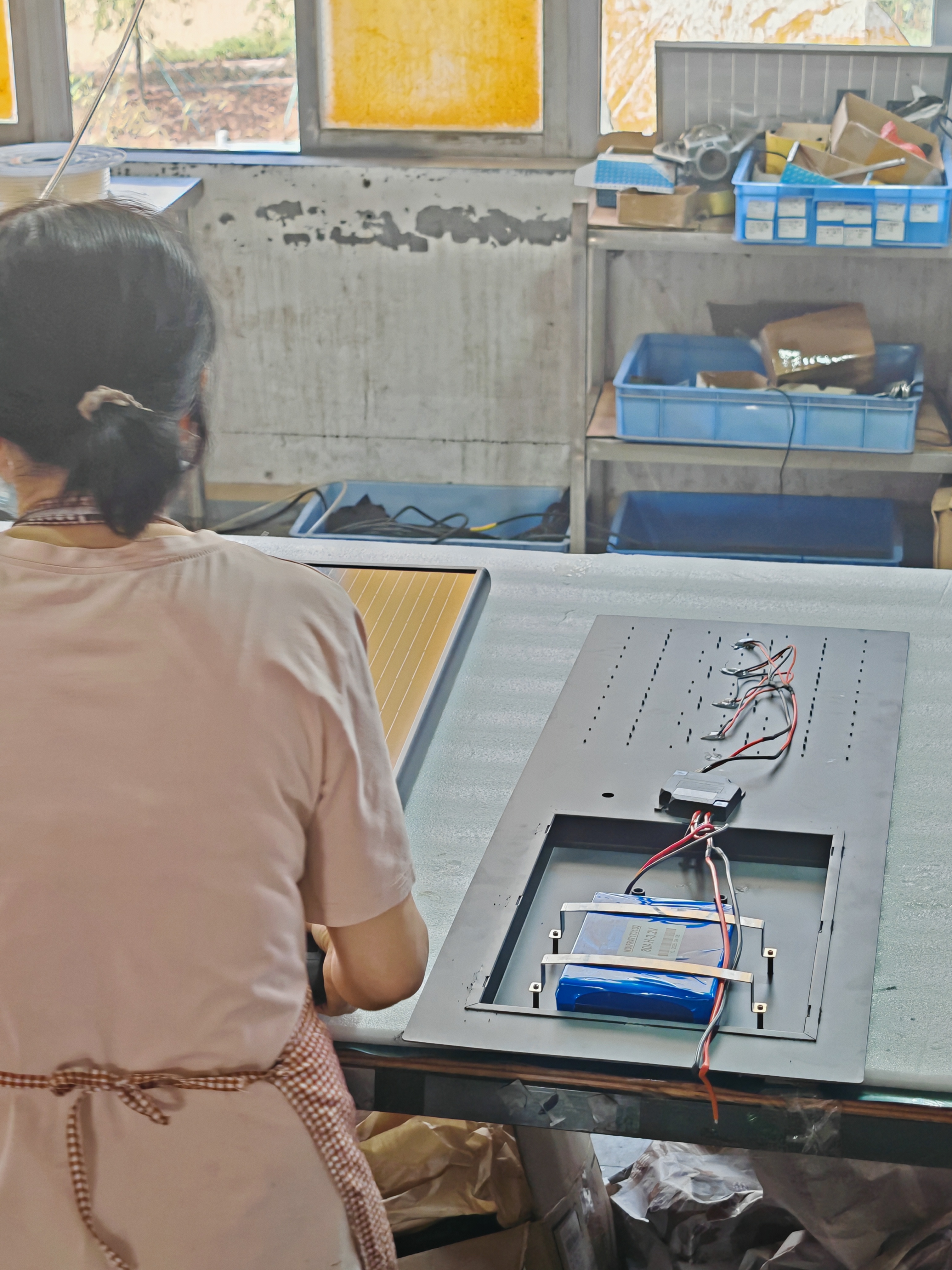

Factory pictures
