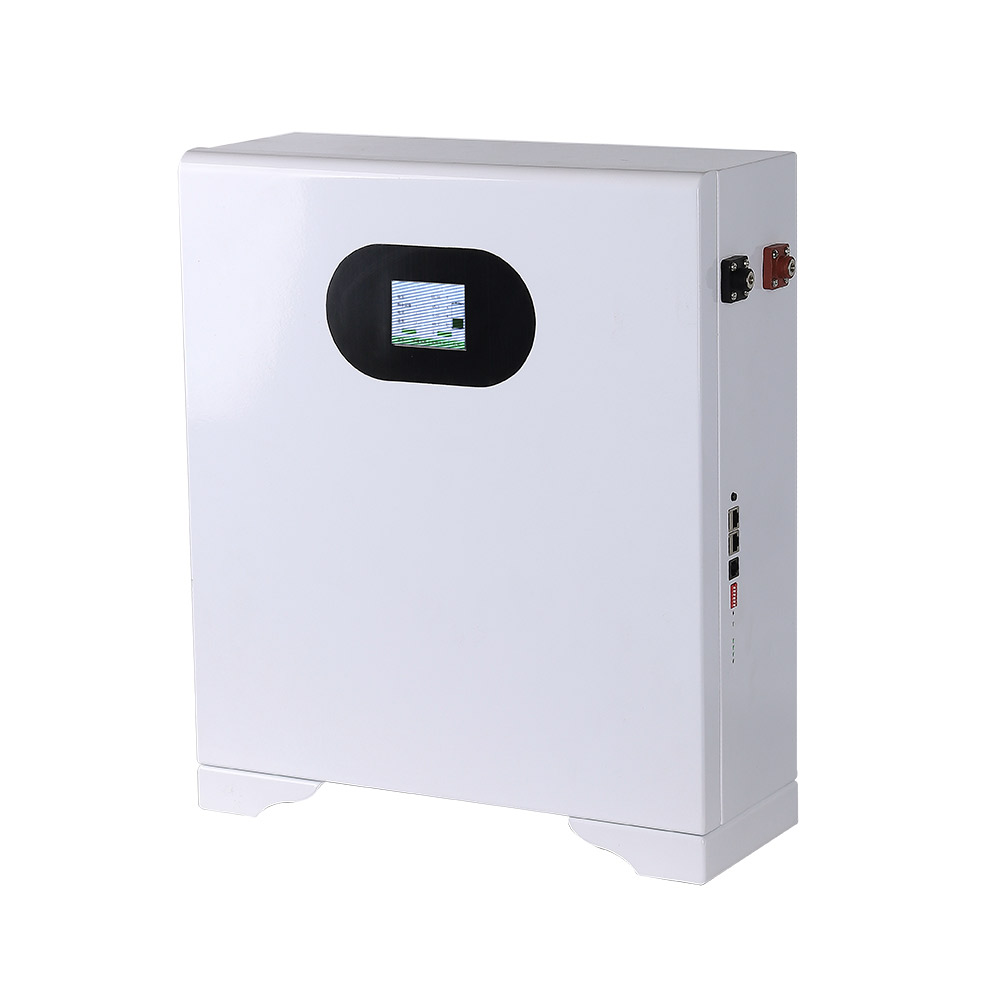

YF-ESS-5KWH 5kWh Lithium Battery Storage System | Modular Design for Home & Commercial Use

Key Features of the storage system

1. 5kWh modular design, scalable up to 30kWh via parallel connection for flexible energy needs.

2.LiFePO4 battery cells with 6000+ cycles (80% DoD) and 10-year warranty for long-term reliability.

3.IP65 protection, explosion-proof design, and wide operating temperature (-20°C~55°C).

Apllication

1.Store solar energy for nighttime use, reducing grid dependence.

2.Emergency backup for hospitals, shops to prevent downtime

3.Off-grid power solutions for remote areas with solar integration.

4.Charge during low tariff periods, discharge at peak times to cut costs.

Advantages

1.Energy Saving: 95% round-trip efficiency minimizes waste.

2.Plug-and-Play: Pre-installed terminals enable 2-hour setup.

3.Eco-Friendly: Zero emissions, compatible with renewables.

ModelParameter
YF-ESS-5KWHBattery Type:16S LiFePO4 51.2V100Ah Battery
Nominal Capacity: 100Ah
Rated Voltage: 51.2V
Discharge Cut-off Voltage: 44V
Charge Cut-off Voltage: 58.4V
Float Voltage: 56V
Max Continuous Charge Current: 50A
Max Continuous Discharge Current: 100A
Energy Capacity: 5120Wh
Rated Output Power: 5000W
Communication Interface: RS485/232
Discharge Temp. Range: -20℃~55℃
Charge Temp. Range: 0℃~45℃
Humidity Range: 5%~90%
Altitude: ≤4000m
Protection Rating: IP22
Storage Time: Maintain full charge at least every 3 months
Net Weight: 43kg
Cycle Life: 6000 Cycles
Dimensions (L*W*H):460*165*550mm

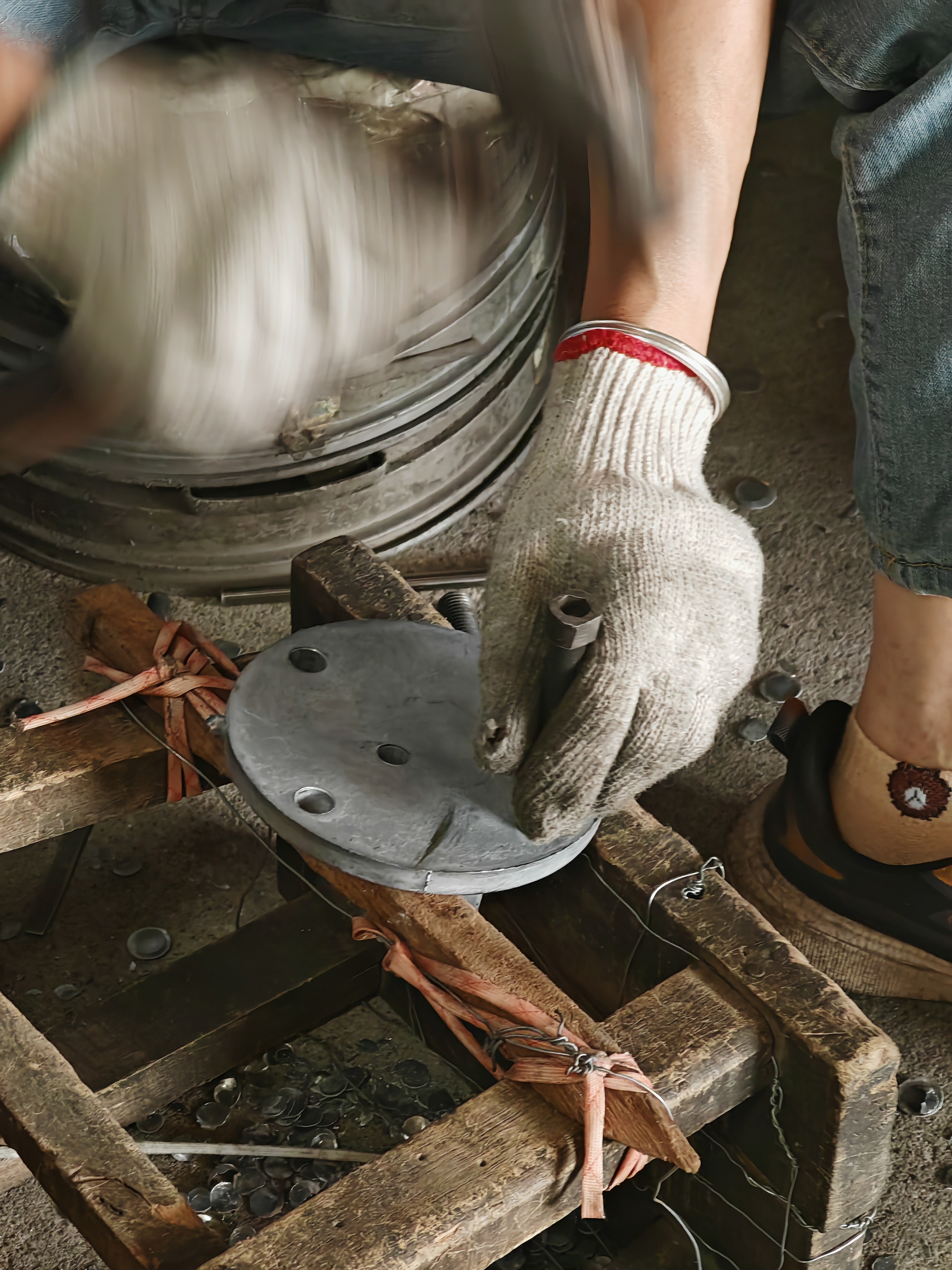

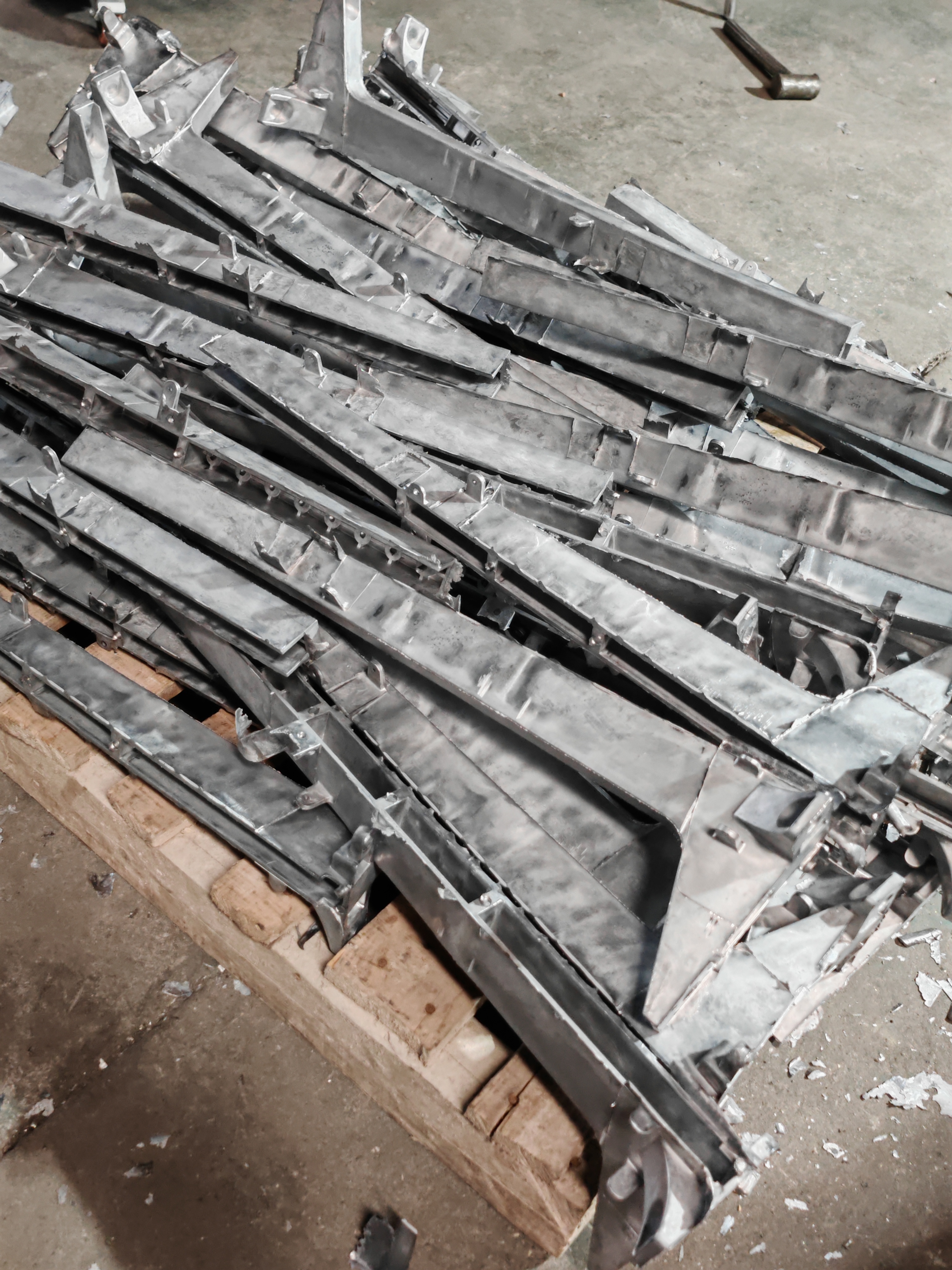

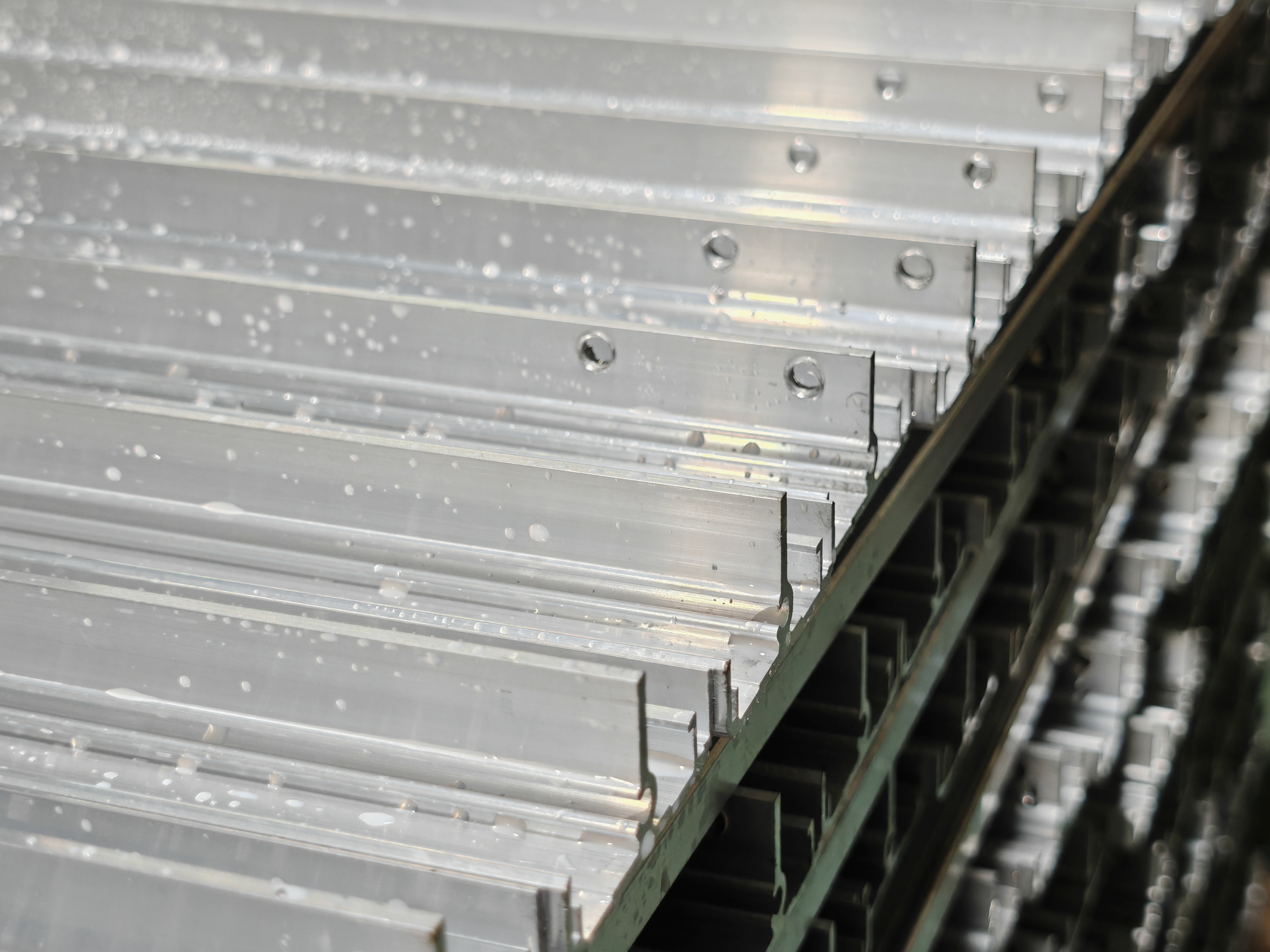

Factory pictures
