60KWH Stackable Lithium Battery Storage System

Nominal voltage: 51.2V

Nominal capacity: 280Ah

Application: Data Center, UPS Backup, Solar Power Backup
Item No :YF-ESS-30KWH
Order (MOQ) :1 pcs
Payment :T/T
Product Origin :China
Color :White
Shipping Port :Jiangmen
Lead Time :2 Weeks
Weight :453 Kg
Product Inquiry
Related
Stackable Energy Storage System
Residential & Commercial Energy Storage Solution

Technical Parameters

AC Input Voltage Range： AC185-265V 50/60Hz
Temperature Protection： ≤80℃
Overload Protection： ≤10500W
Output Voltage / Frequency： 220V / 50Hz
Rated Output Power： 10000W
Output Waveform： Pure Sine Wave
Built-in Charging Current： 10-80A
UPS Response Time： ≤5ms
Inverter Layer Weight： 31 KG
Inverter Layer Size： 750 × 450 × 190 mm
Single Battery Weight： 110 KG
Single Battery Size： 750 × 450 × 250 mm
4-layer Battery Size： 750 × 450 × 1125 mm
4-layer Battery Weight： 453 KG
Product NameSpecificationDescriptionUnit
Inverter LayerStackable Inverter
10KW MPPT 100A ×2		10000W
Battery Layer ×1Stacking Type
15KWH ×1		15000Wh
Battery Layer ×2Stacking Type
15KWH ×2		30000Wh
Battery Layer ×3Stacking Type
15KWH ×3		45000Wh
Battery Layer ×4Stacking Type
15KWH ×4		60000Wh

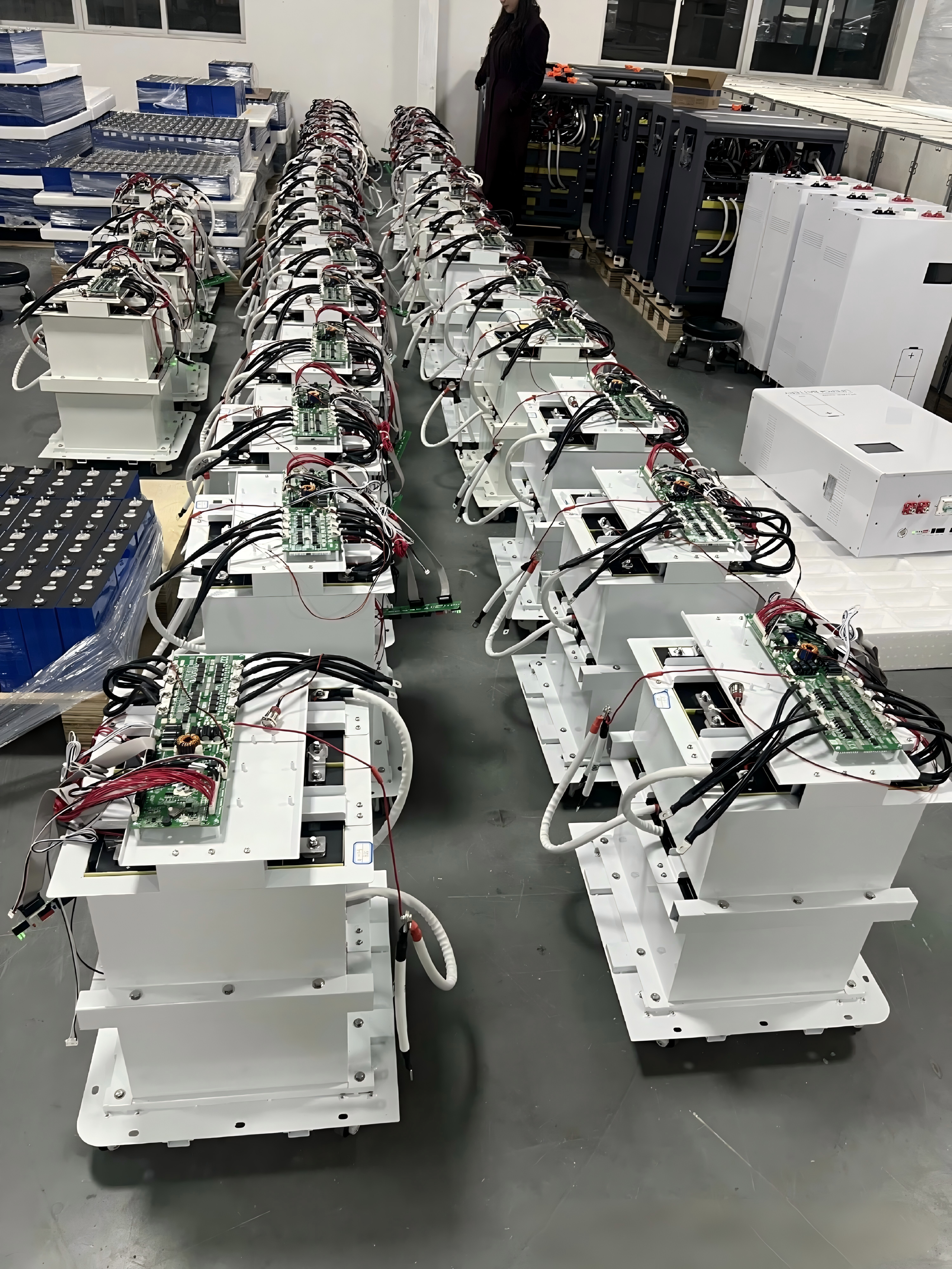

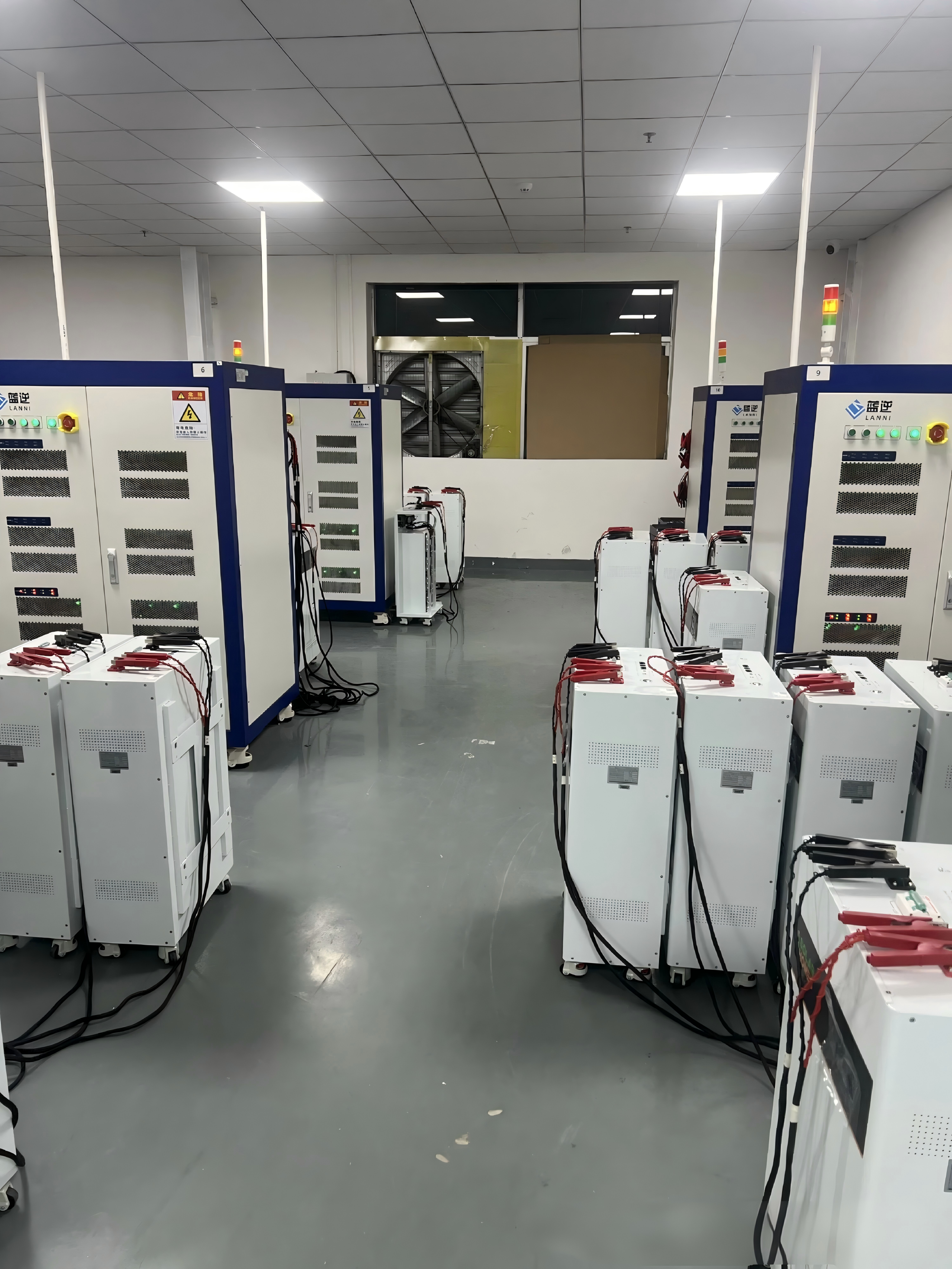

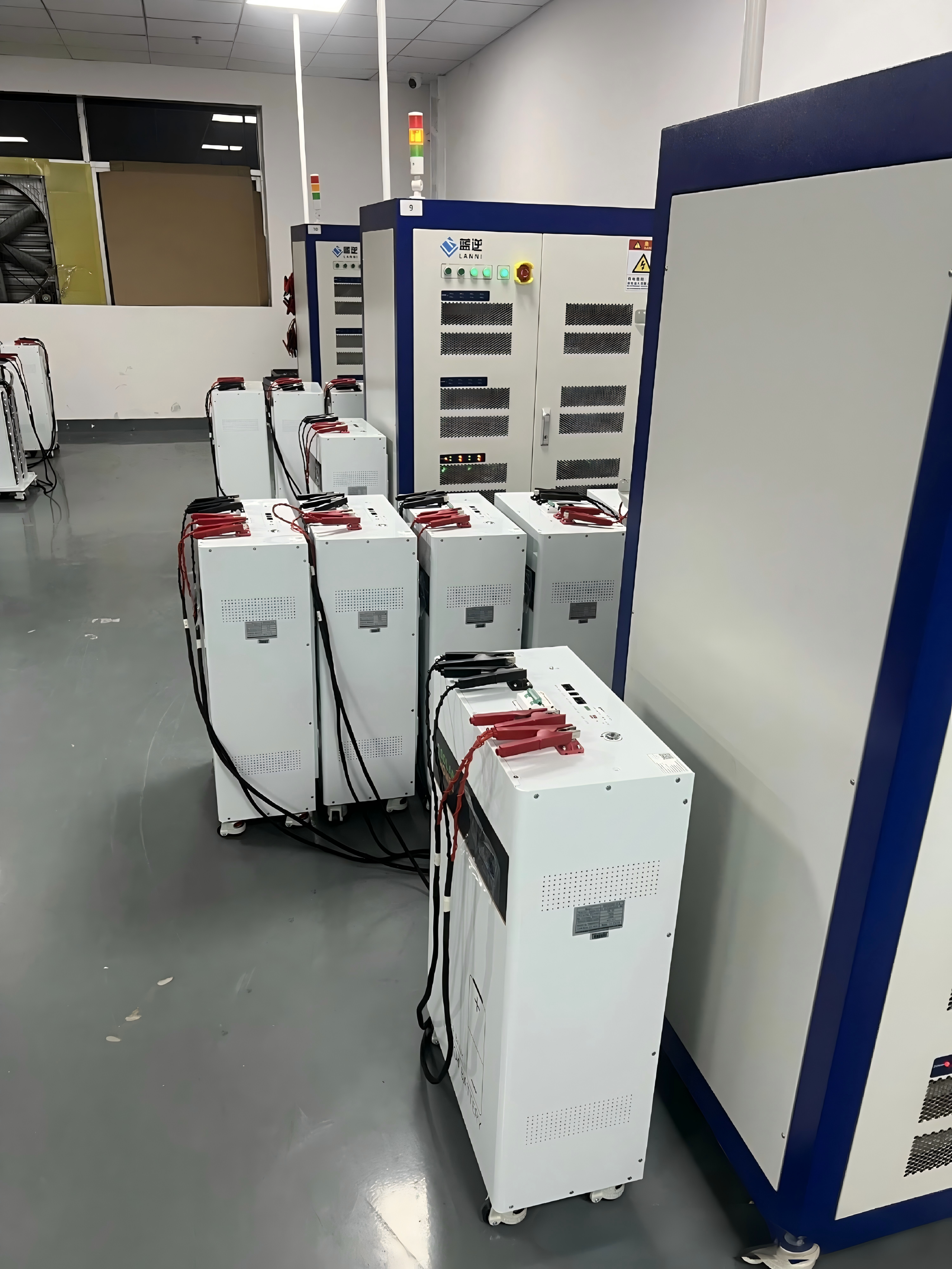

Factory pictures
