5KWH Home Lithium Battery Storage System

Model: YF-ESS-5KWH

Nominal voltage: 51.2V

Nominal capacity: 100Ah

Application: Data Center, UPS Backup, Solar Power Backup
Item No :YF-ESS-5KWH
Order (MOQ) :1 pcs
Payment :T/T
Product Origin :China
Color :White
Shipping Port :Jiangmen
Lead Time :2 Weeks
Weight :43 Kg
Product Inquiry
Related
15KWH Energy Storage System
Residential & Commercial Energy Storage Solution

Technical Parameters

Battery Type: 16S LiFePO4 51.2V 300Ah Battery
Nominal Capacity: 100Ah
Rated Voltage: 51.2V
Discharge Cut-off Voltage: 44V
Charge Cut-off Voltage: 58.4V
Float Voltage: 56V
Max Continuous Charge Current: 50A
Max Continuous Discharge Current: 100A
Energy Capacity: 5120Wh
Rated Output Power: 5000W
Communication Interface: RS485 / RS232
Discharge Temperature Range: -20°C ~ 55°C
Charge Temperature Range: 0°C ~ 45°C
Humidity Range: 5% ~ 90%
Altitude: ≤4000m
Protection Rating: IP22
Storage Time: Maintain full charge at least every 3 months
Net Weight: 43kg
Cycle Life: 6000 Cycles

Dimensions (L×W×H): 460 × 165 × 550 mm

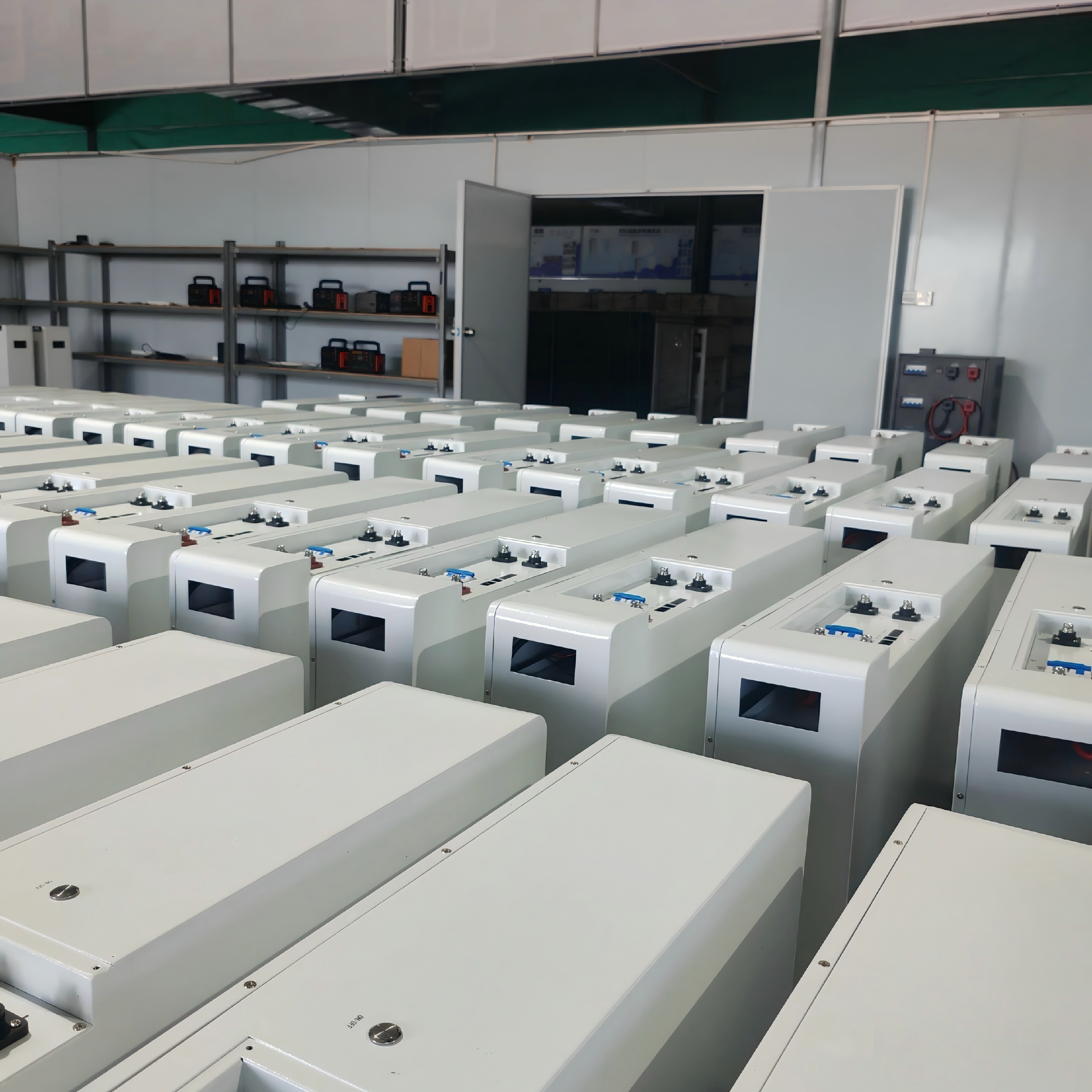

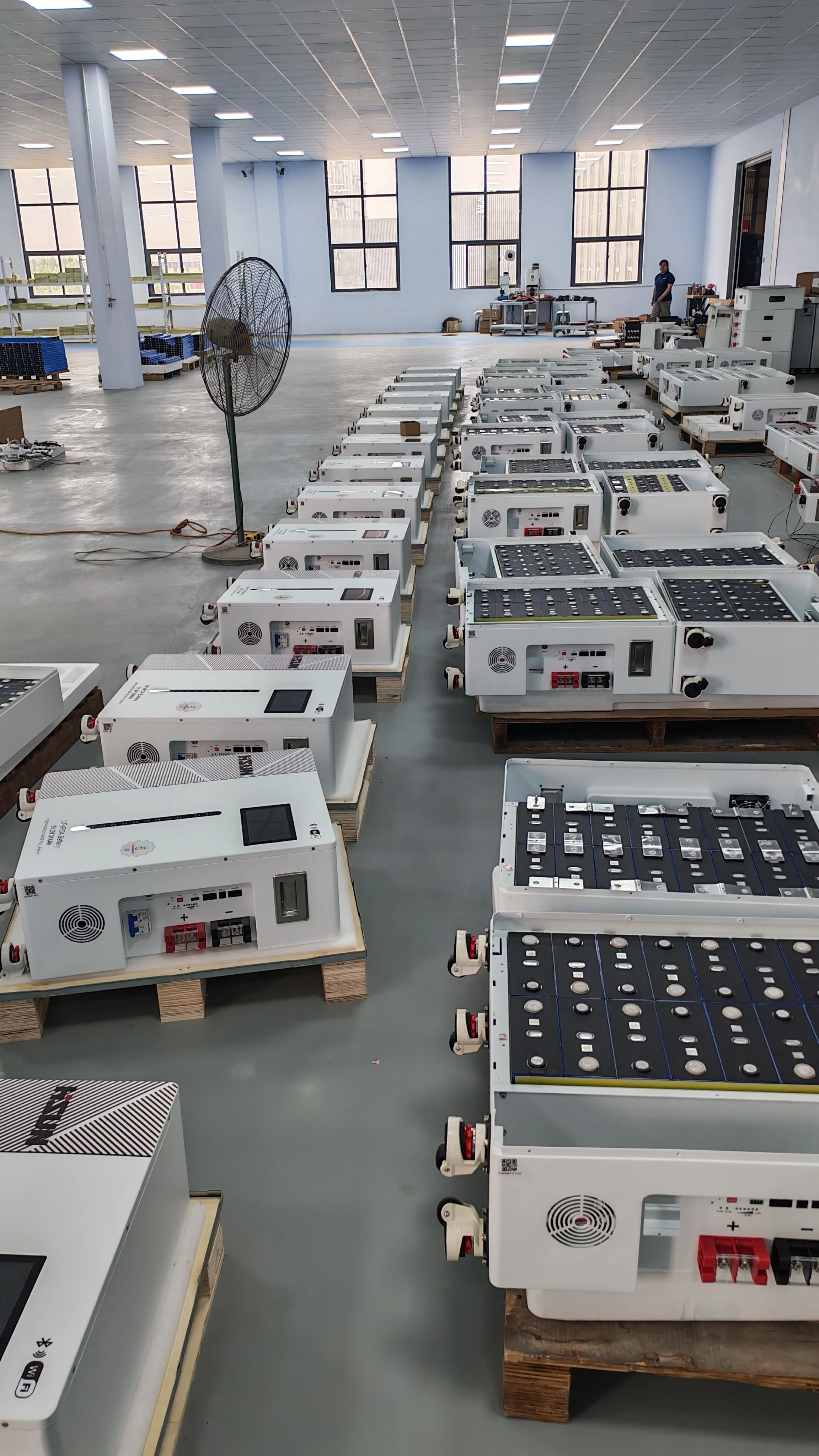

Factory pictures
