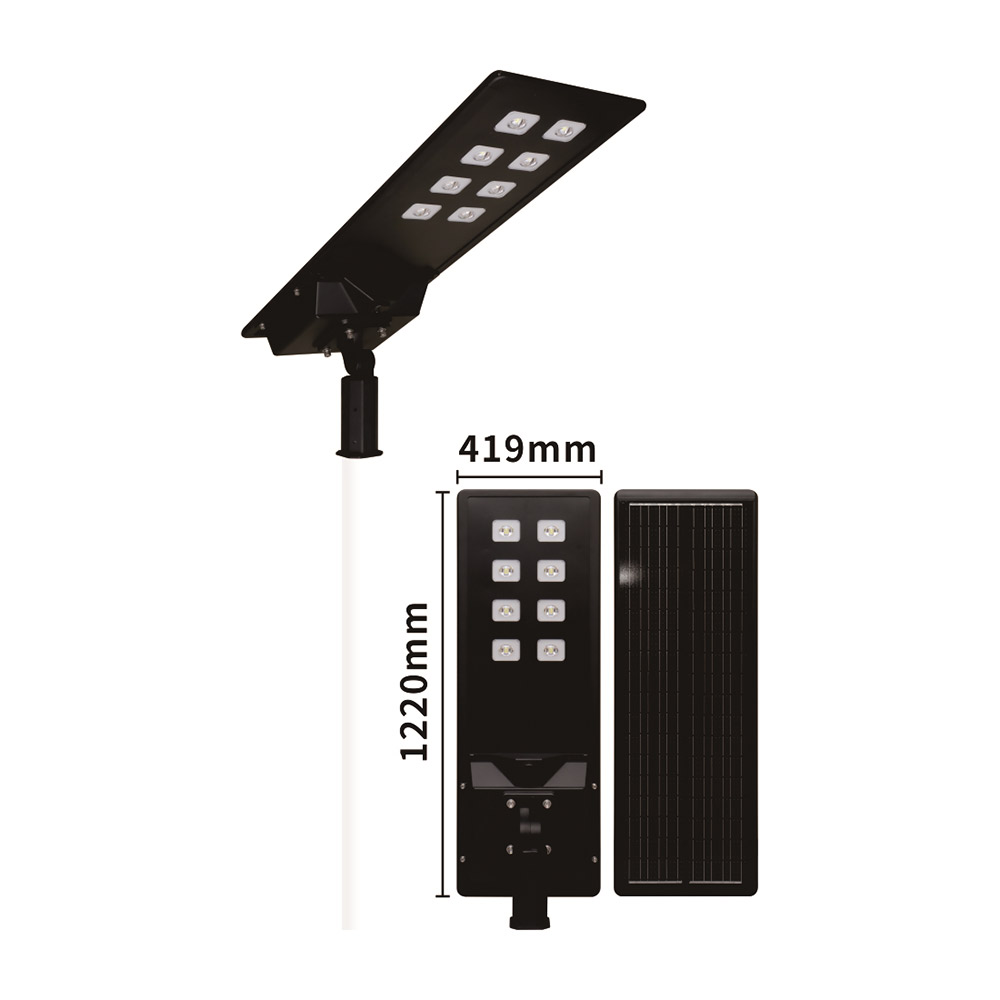

YF-BML-8E-150W BULL EYE MULTI BEAD INTEGRATED SOLAR STREET LIGHT SERIES

Certification:           CE/3C/RoHs

Delivery Time:         20-25 days

Payment Terms:      L/C,D/A,D/P,T/T

Charging Time:       6-8 hours

Lumen:                    180lm/w

Material:                   Die cast aluminum

Install Height:          5-7m

Start Port:                Jiangmen,Guangdong

Supply Ability:         3000PCS/Month



Key Features of the solar street light

1.8 adjustable LED heads (120° each) cover 200㎡, eliminating shadows with 50% uniformity improvement.

2.Dual light/motion sensors auto-adjust brightness (100% when active, 30% standby), saving 60% energy.

3.APP controls each head individually (scheduling/dimming), cutting energy use by 40%.

4.Aerospace aluminum horns withstand Beaufort 14 winds, -40°C~70°C operation.

Apllication

1.Lighting for intersections and underpasses to enhance traffic safety.

2.Wide-area lighting for industrial parks with reduced hardware deployment.

3.Adaptive lighting for winding mountain roads and slopes.

4.Event lighting with stage-grade effects via adjustable heads.

Advantages

1.Scalability: Network thousands of lights via cloud management.

2.Anti-Vandalism: Vandal-proof heads pass 10-ton crush tests.

3.Eco-Friendly: Reduces 3T CO₂ annually per light, aligns with smart city goals.



ModelPowerSolar panelBattery capacitySize(mm)Parameter
YF-BML-8E-150W150W

18V80W

1158*394*4


3.2V100AH1220*420*240

1. Lamp body material: Die cast aluminum + aluminum

2. Light on time: full light more than 15 hours, energy saving mode lights up for more than 48 hours,

3. Charging time: 6-8h

4. Working temperature: -30℃-+60℃

5. Lamp bead: Philips 5050SMD 9*8pcs

6.Color temperature: 3000-6000k

7. Luminous flux: 1800m/w

8. Light power: 40W

9.The whole lamp lumen: 7200LM

10.Installation Height: 5-7m

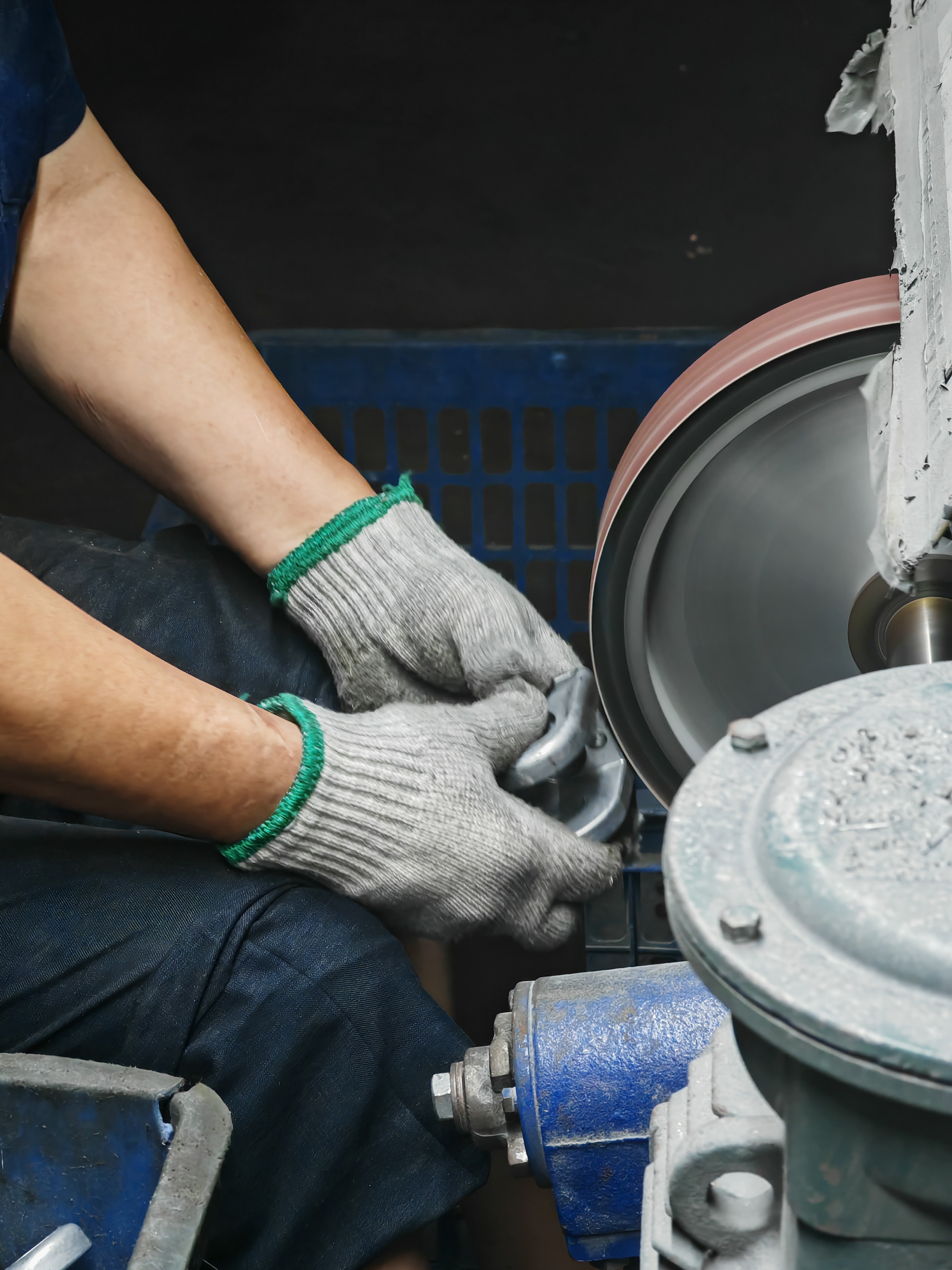

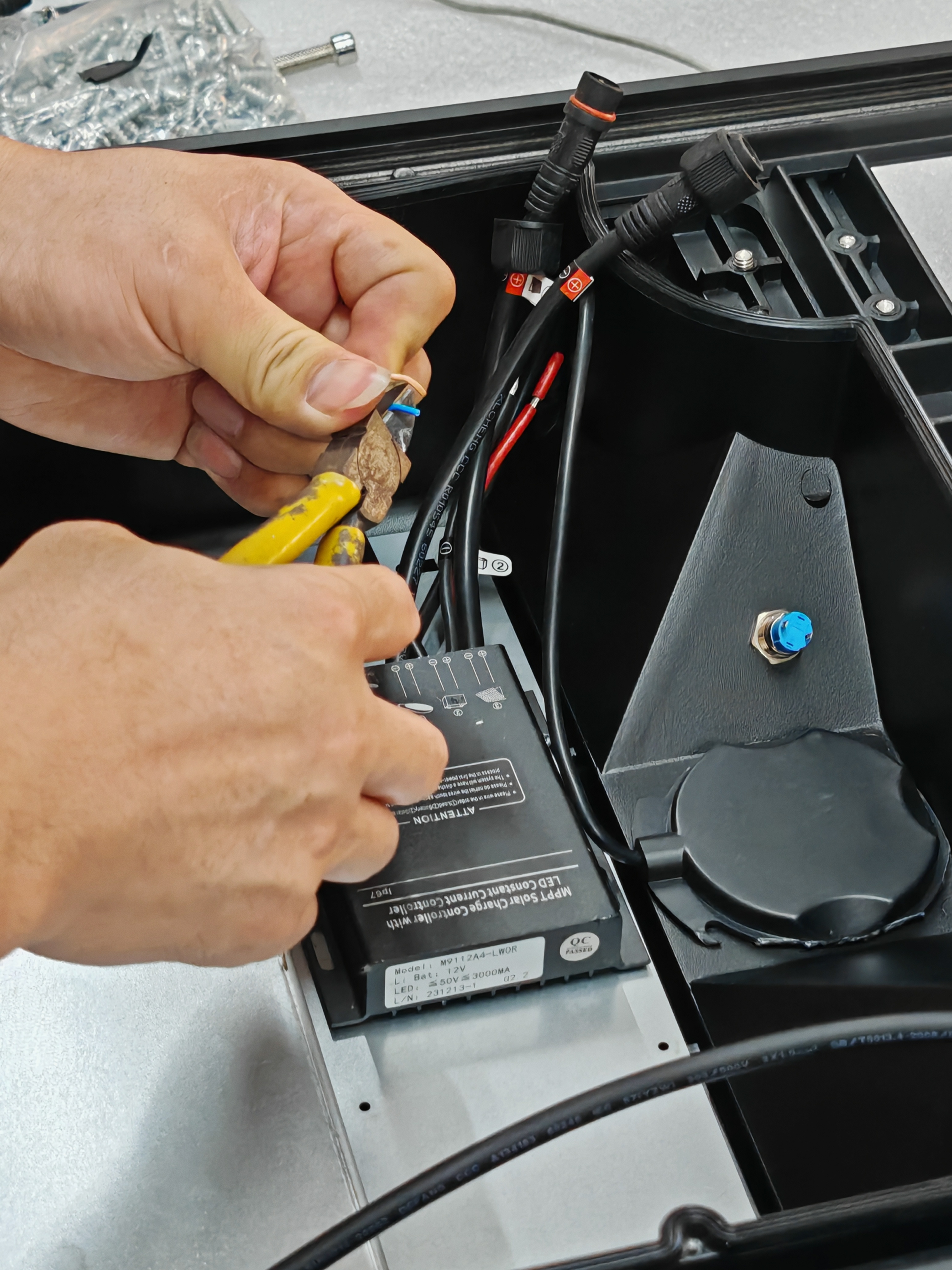

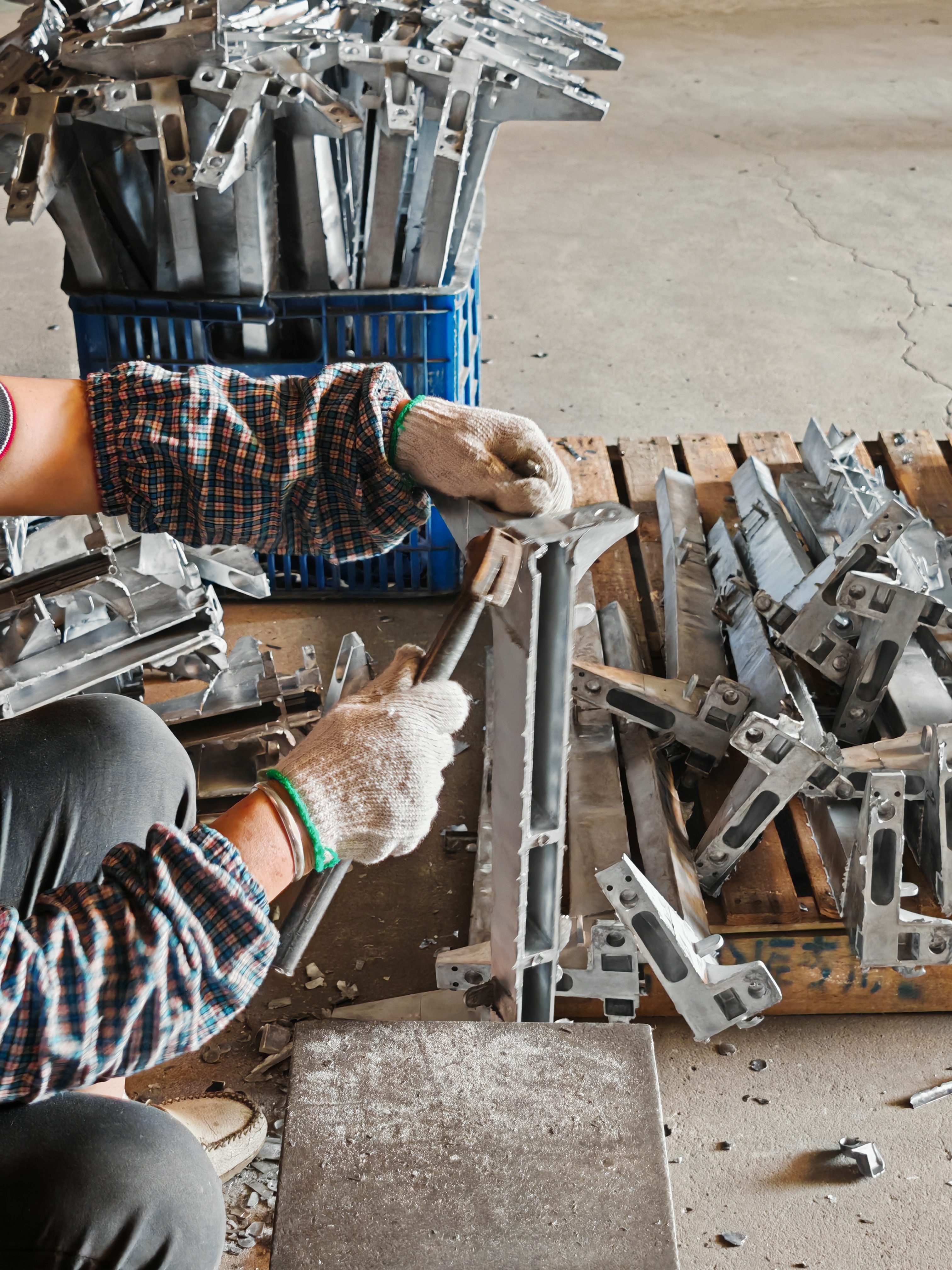

Factory pictures
