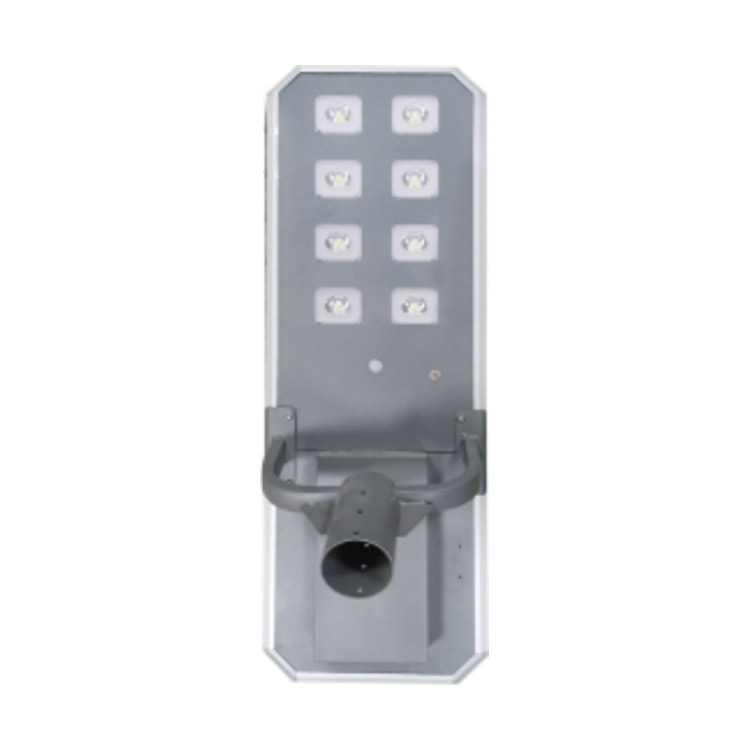

YF-OCT2-8E-40W OCTAGONAL INTEGRATED SOLAR STREET LIGHT (-2) SERIES

Certification:           CE/3C/RoHs

Delivery Time:        20-25 days

Payment Terms:      L/C,D/A,D/P,T/T

Charging Time:       4-5 hours

Discharging Time:  12 hours

Lumen:                    160lm/w

Material:                   Aviation Aluminum 6063

Install Height:          6m

Start Port:                Jiangmen,Guangdong

Supply Ability:         3000PCS/Month


Key Features of the solar street light

1.All-in-one octagonal design with 60W PERC panel + 3.2V/80Ah LiFePO4 battery, tamper-proof and cable-free.

2.Radar + light sensor adjusts brightness (100% when active, 20% standby), saving 65% energy.

3.IP65 waterproof, -30°C~60°C operation, resistant to salt spray and extreme climates

4.7-day operation in cloudy weather, pre-assembled 3M pole installed in 20 minutes.

Apllication

1.Urban streets and neighborhoods as grid-free, cost-saving solutions.

2.Eco-friendly lighting for parks and scenic areas with minimal environmental impact.

3.Off-grid lighting for remote islands and mountainous regions.

4.Temporary lighting for construction sites with dust/shock resistance..

Advantages

1.Zero Energy Cost: Solar-powered, 10-year battery lifespan.

2.Military-Grade Build: Aerospace aluminum, 15-year durability.

3.Smart Control: Optional Wi-Fi/Bluetooth for remote management.



ModelPowerSolar panelBattery capacitySize(mm)Parameter
YF-OCT2-8E-40W40W

60W

3.2V80AH400*10001. Lamp body material: aviation aluminum 6063

2. Solar panel: 50W

3. Lamp body size: 400*1000

4. Nominal lamp power: 40W

5. Discharge time: 12h

6. Battery capacity: 3.2V80AH

7. Battery operating temperature: high temperature 60 -- low temperature -30

8. Light source: SMD5050

9. Lamp beads: 6PCS*8

10. Whole lamp lumen: 8000lm

11.Installation Height: 6m

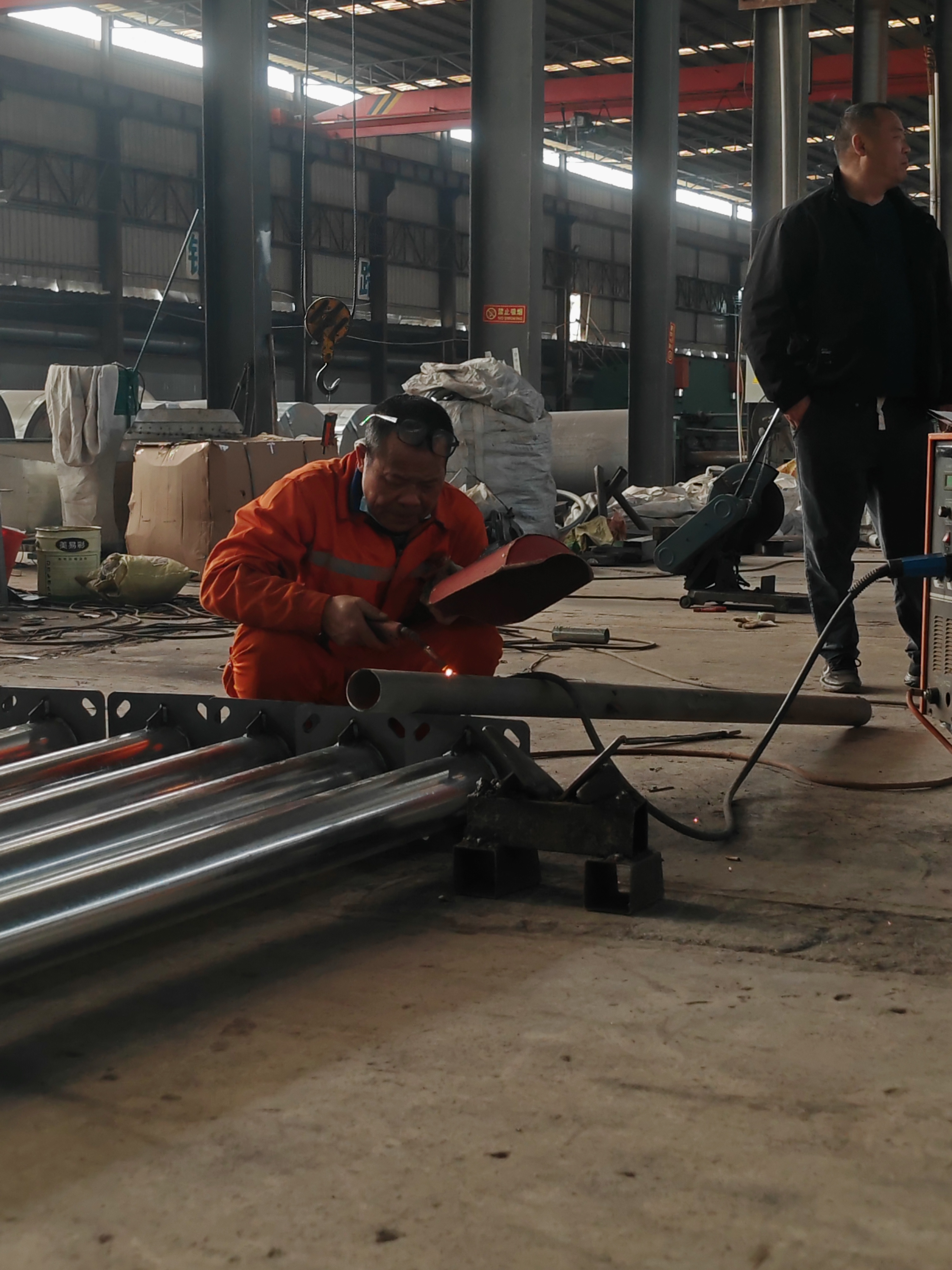

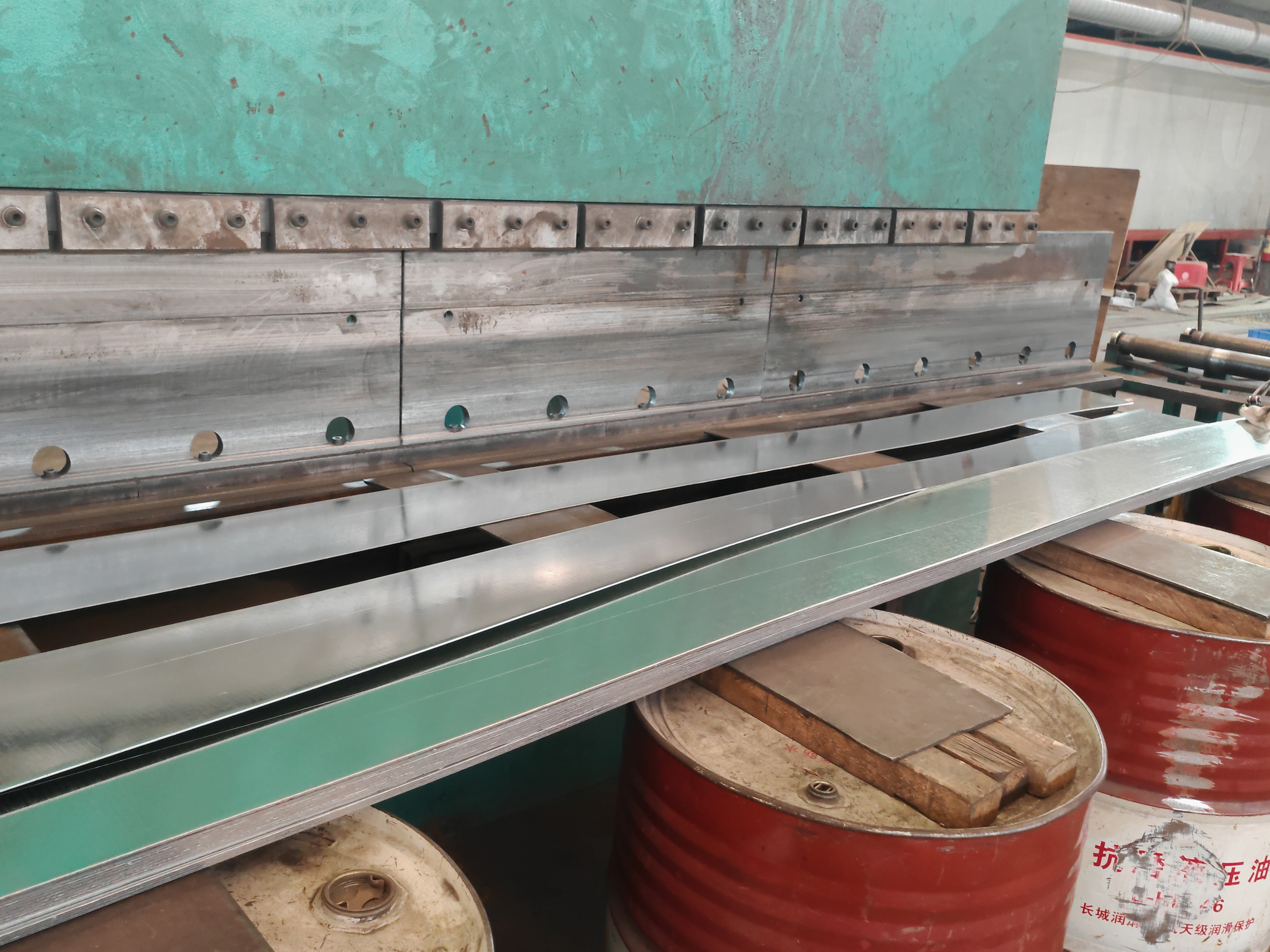

Factory pictures

=
