YF-DL-8M-400W Double-lane electric adjustment Integrated Solar Street light series

Certification:           CE/3C/RoHs

Delivery Time:         20-25 days

Payment Terms:      L/C,D/A,D/P,T/T

Charging Time:       6-8 hours

Discharging Time:  30-36 hours

Lumen:                    180-200lm/w

Material:                  Die-casting Aluminum

Install Height:         6-8m

Start Port:               Jiangmen,Guangdong

Supply Ability:        3000PCS/Month



Key Features of the solar street light

1.Monocrystalline PERC cells with 23% efficiency, maximizing energy output per square mete

2.Anti-PID, salt mist corrosion resistance, stable performance in extreme climates with 25-year linear power warranty.

3.Lightweight (22kg) design compatible with diverse mounting systems for easy rooftop/ground installation.

4.15% higher energy yield in low-light conditions, ideal for cloudy regions.

Apllication

1.Residential rooftop systems for self-consumption and feed-in tariff programs.

2.Commercial & industrial distributed energy solutions for carbon reduction.

3.Off-grid systems with battery storage for remote areas.

4.Agrivoltaic solutions for greenhouses and irrigation systems..

Advantages

1.High ROI: Low degradation (≤2% first year) ensures stable long-term returns.

2.Plug-and-Play: Pre-installed terminals enable 2-hour setup.

3.Eco-Friendly: Zero emissions, compatible with renewables.

4.Extreme Weather Resistance: 5400Pa load capacity for heavy snow and strong winds.



ModelPowerSolar panelBattery capacitySize(mm)Parameter
YF-DL-8M-400W400W


18V170W
2036*394*4MM


12.8V100AH2100*420*240

1.Model No.:PD-BJ400W

2.Power:400w

3.Whole Lamp Lumen:18000

4.Luminous Flux:180-200lm/wSolarPanel Power:18v200w

5.Battery Capacity:12.8v/100ah

6.Lamp Body Dimensions:2100*420*240mm

7.Solar Pane Size:2036*394*4mm

8.Light Source:56pcs*8

9.CCT:3000-6000k

10.BeamAngle:60*150

11..Charging Time:6-8h

12.Working Temperature:-30-+60'C

13.IP rating:IP 65

14.Light Source:SMD5050

15.Installation Height:6-8m

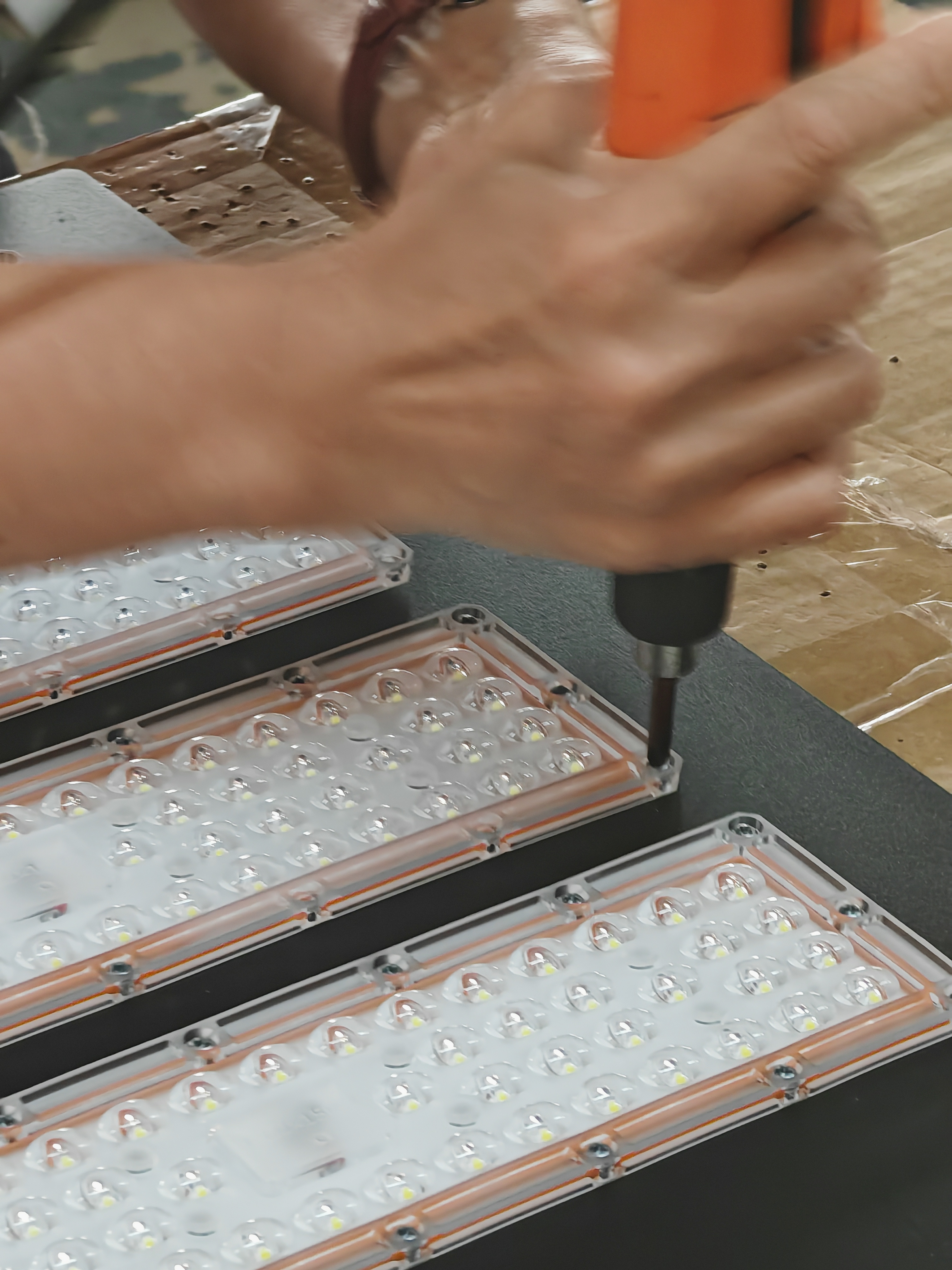

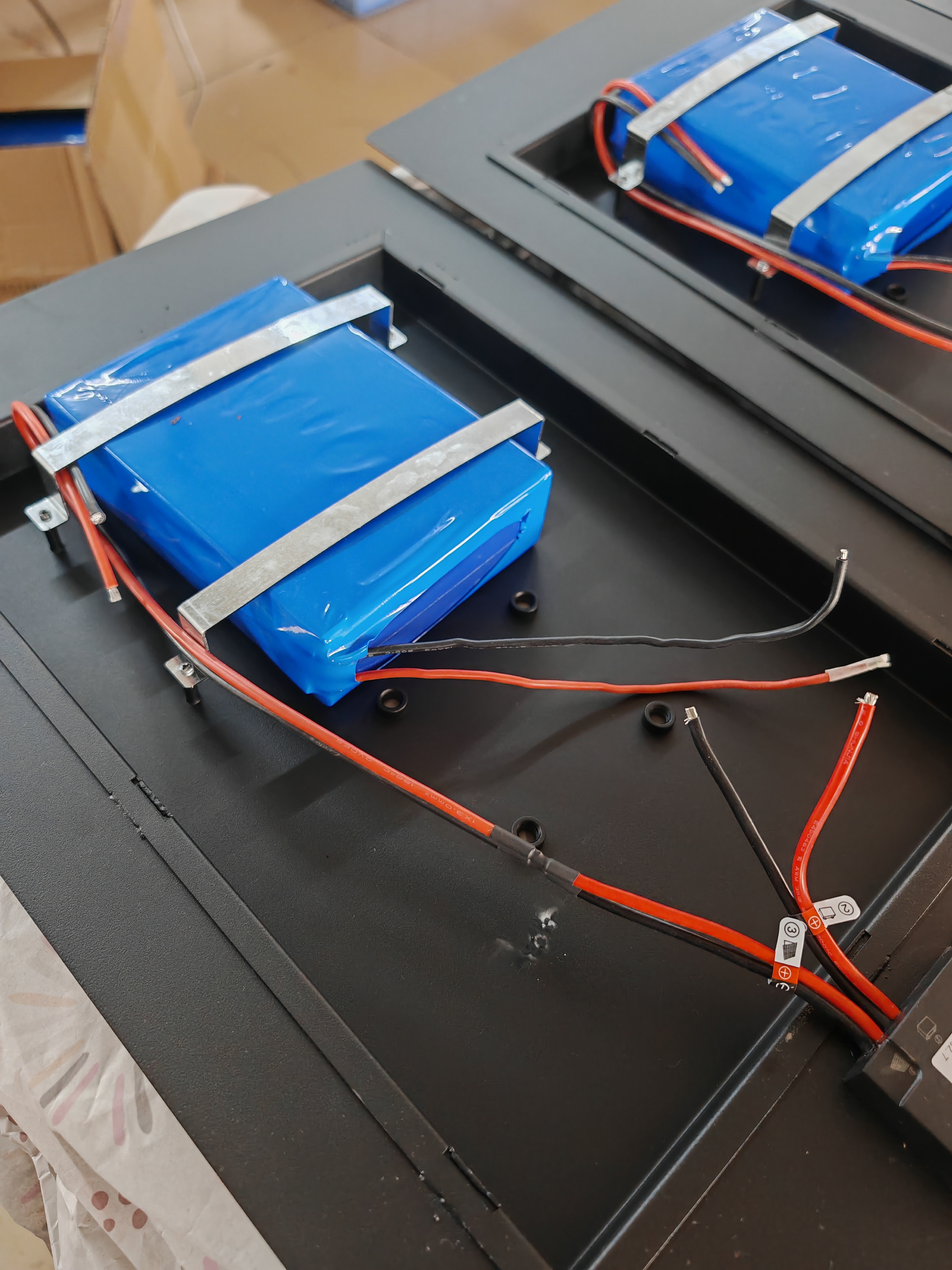

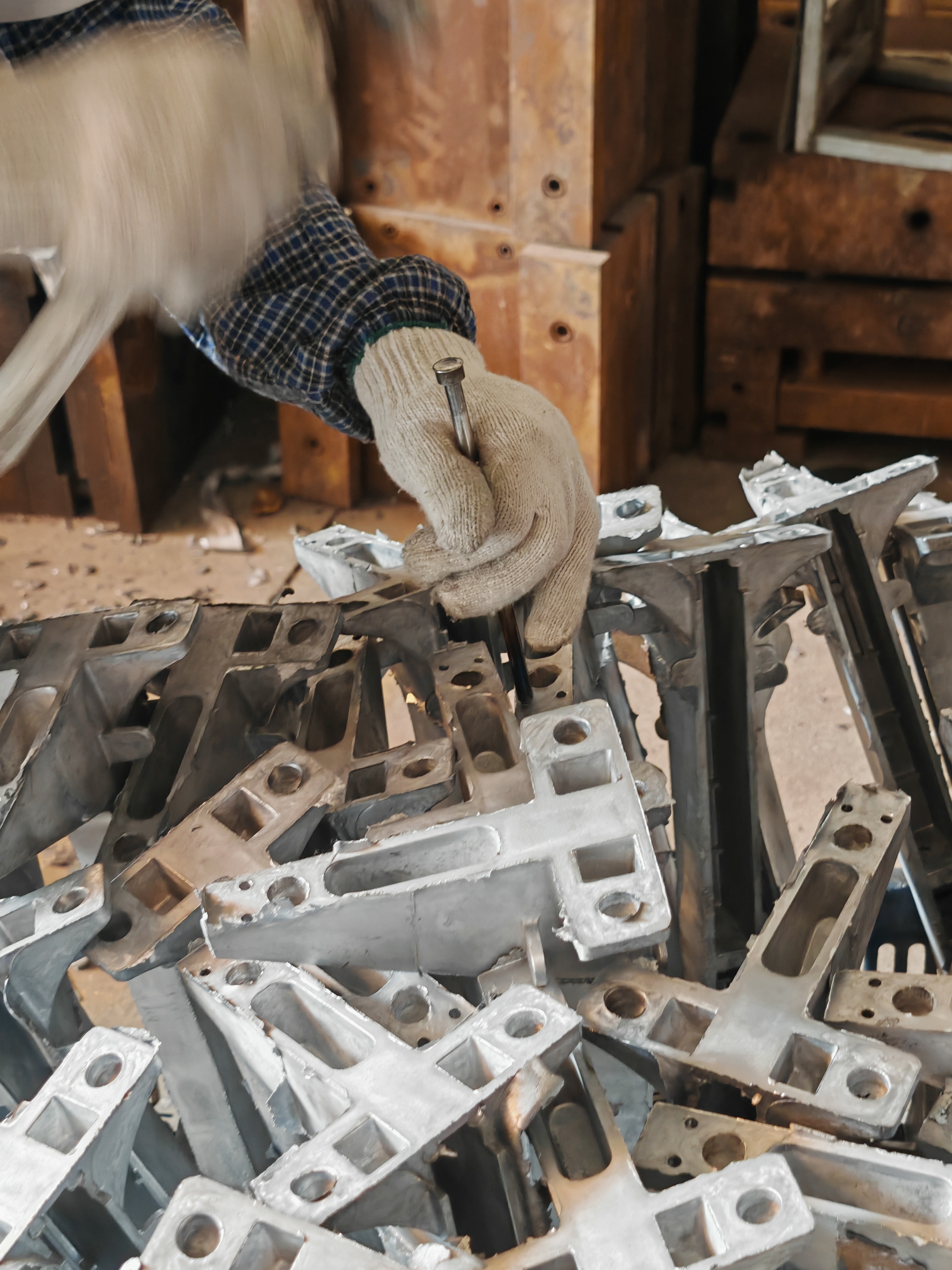

Factory pictures
