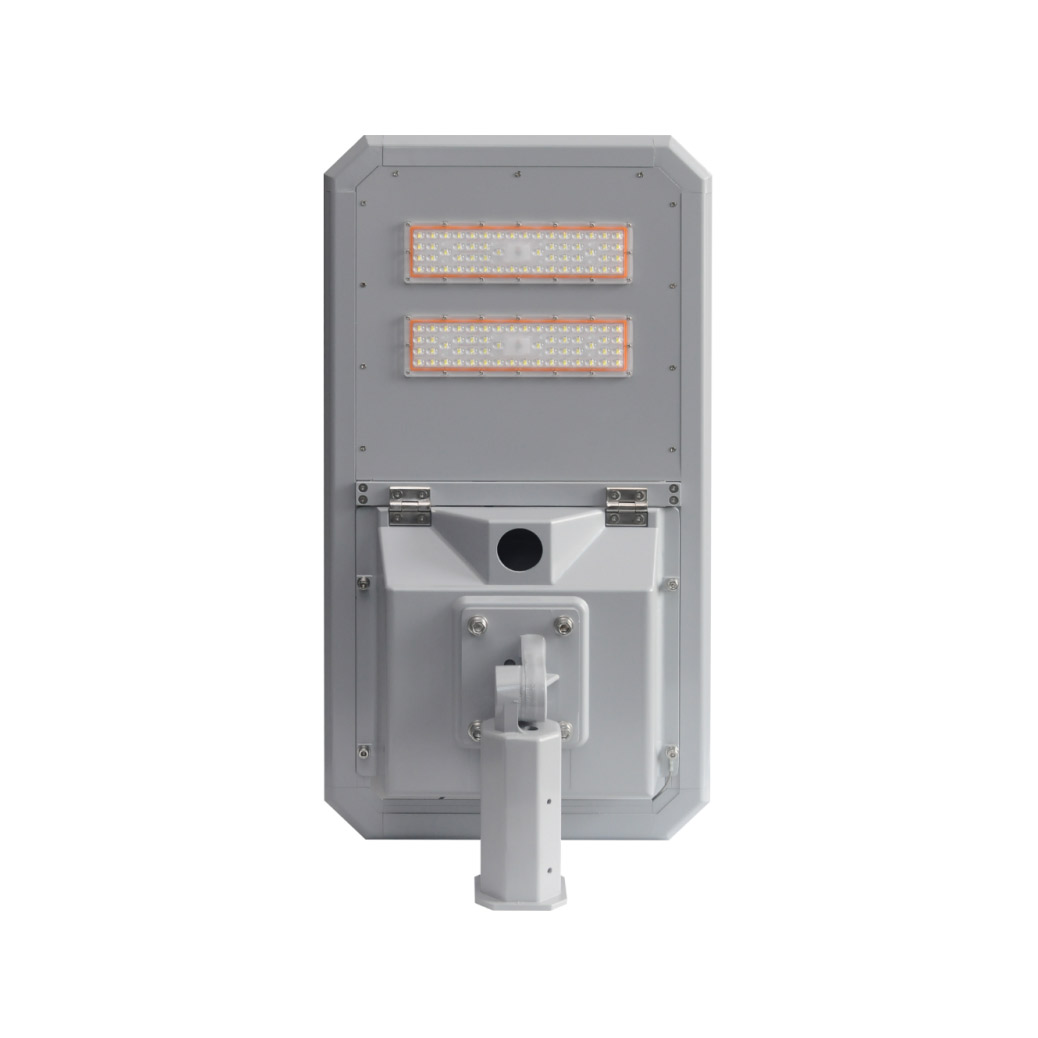

YF-OCT-2M-100W OCTAGONAL INTEGRATED SOLAR STREET LIGHT (-1) SERIES

Certification:              CE/3C/RoHs

Delivery Time:          20-25 days

Payment Terms:       L/C,D/A,D/P,T/T

Charging Time:         6-8 hours

Discharging Time:   30-36 hours

Lumen:                      200lm/w

Material:                  aviation Aluminum 6063

Start Port:                     Jiangmen,Guangdong

Supply Ability:            3000PCS/Month



Key Features of the solar street light

1.All-in-one octagonal design with 150W PERC panel + 12.8V/20Ah LiFePO4 battery, tamper-proof and cable-free.

2.Radar + light sensor adjusts brightness (100% when active, 20% standby), saving 65% energy.

3.IP65 waterproof, -30°C~60°C operation, resistant to salt spray and extreme climates

4.7-day operation in cloudy weather, pre-assembled 3M pole installed in 20 minutes.

Apllication

1.Urban streets and neighborhoods as grid-free, cost-saving solutions.

2.Eco-friendly lighting for parks and scenic areas with minimal environmental impact.

3.Off-grid lighting for remote islands and mountainous regions.

4.Temporary lighting for construction sites with dust/shock resistance..

Advantages

1.Zero Energy Cost: Solar-powered, 10-year battery lifespan.

2.Military-Grade Build: Aerospace aluminum, 15-year durability.

3.Smart Control: Optional Wi-Fi/Bluetooth for remote management.



ModelPowerSolar panelBattery capacitySize(mm)Parameter
YF-OCT-2M-100W100W


18V/70W


12.8V30AH920*480*270

1. Lamp body material: aviation aluminum 6063

2. Solar panel: 888X394mm 18v70W single crystal

3. Lamp body size: 920X480X270

4. Nominal lamp power: 100 watts

5. Discharge time: 6-8h

6. Battery capacity: 12.8V30AH

7. Battery operating temperature: high temperature 60 --  low temperature -30

8. Light source: SMD5050

9. Lamp beads: 56PCS*2

10. Whole lamp lumens: 5800

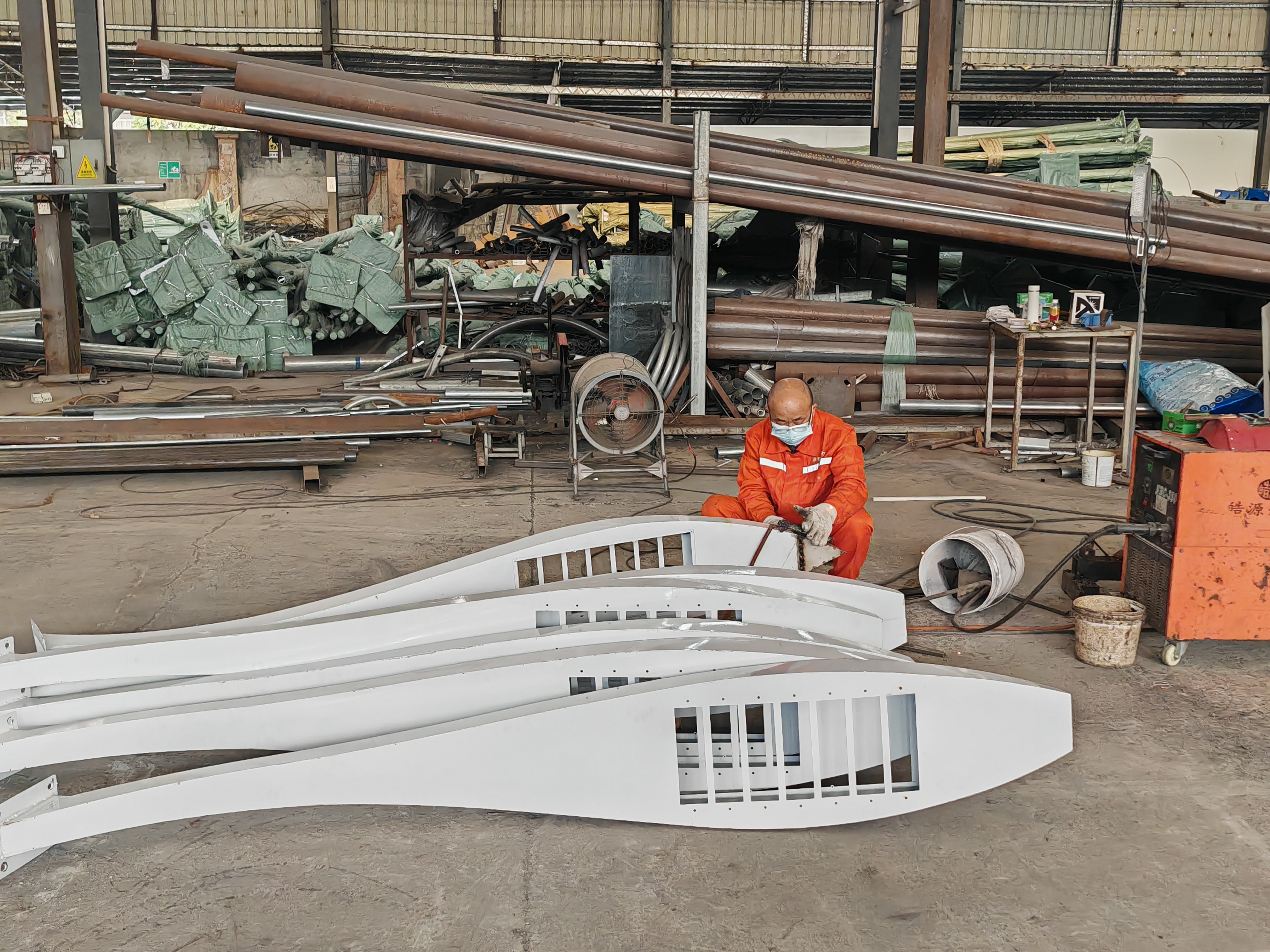

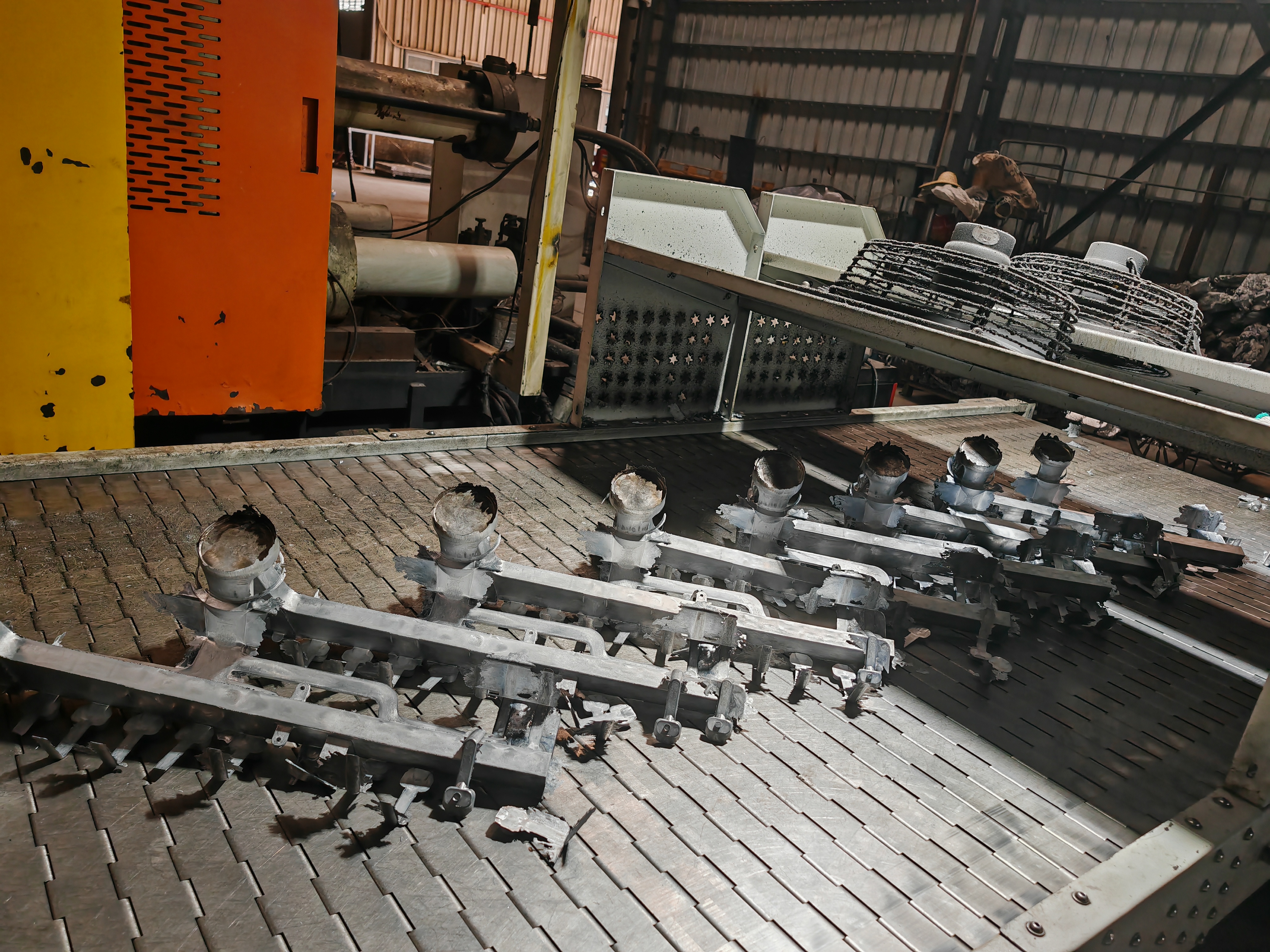

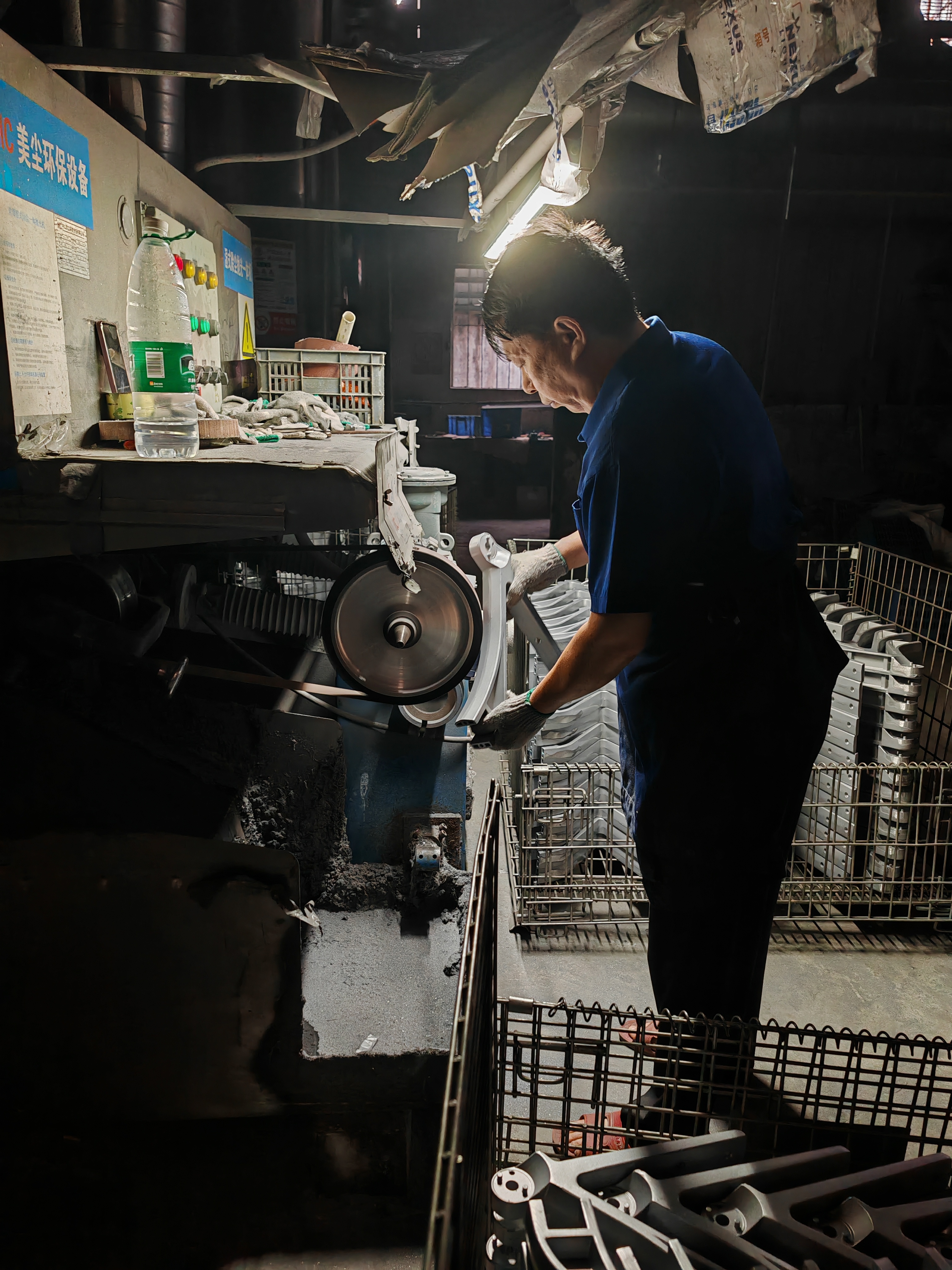

Factory pictures
