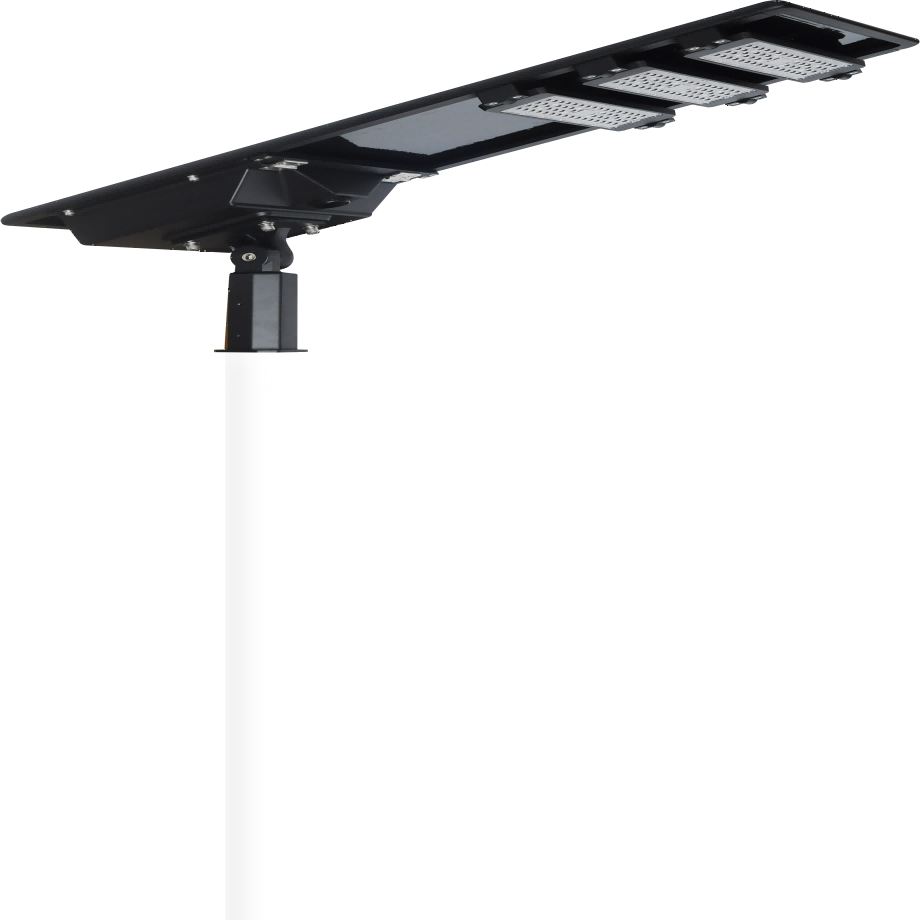

Smart All-in-One Adjustable integrated Solar Street Light
  • 🔹 Model: YF-A3M
  • 🔹 Power: 150W
  • 🔹 Monocrystalline Silicon Solar Panel
  • 🔹 PHILIPS LED Source with Janpen Teijin Lens
  • 🔹 High Capacity LiFePO4 Lithium Battery
  • 🔹 Die-Casting Aluminum Housing
  • 🔹 IP66 Waterproof Protection
  • 🔹 CE & RoHS Certified
Product Inquiry
Related

Technical Data

ModelYF-A3M
Solar panel120W/18V, MONO （1220*420*240mm）
Rated power150W
MaterialDie-casting Aluminum
LED chipPhilips 5050 56PCS×3
Lumens18000LM
LiFePO4 battery

Option 1：40AH / 12.8V-512WH

Option 2：80AH/  3.2V-320WH

Install height6-8M
Spacing25-30M
Pole diameter58/76mm
Color temp.3000 / 4000 / 6500K
Work temp.-20℃ ~ +60℃ (When the temperature is below -10℃, derating use)
Water proofIP66
Charge time6–8H
Lighting timeLight on at dusk, Light off at dawn auto.
12 hours lighting time per day, 2 rainy days backup.
Size1220 × 420 × 240MM

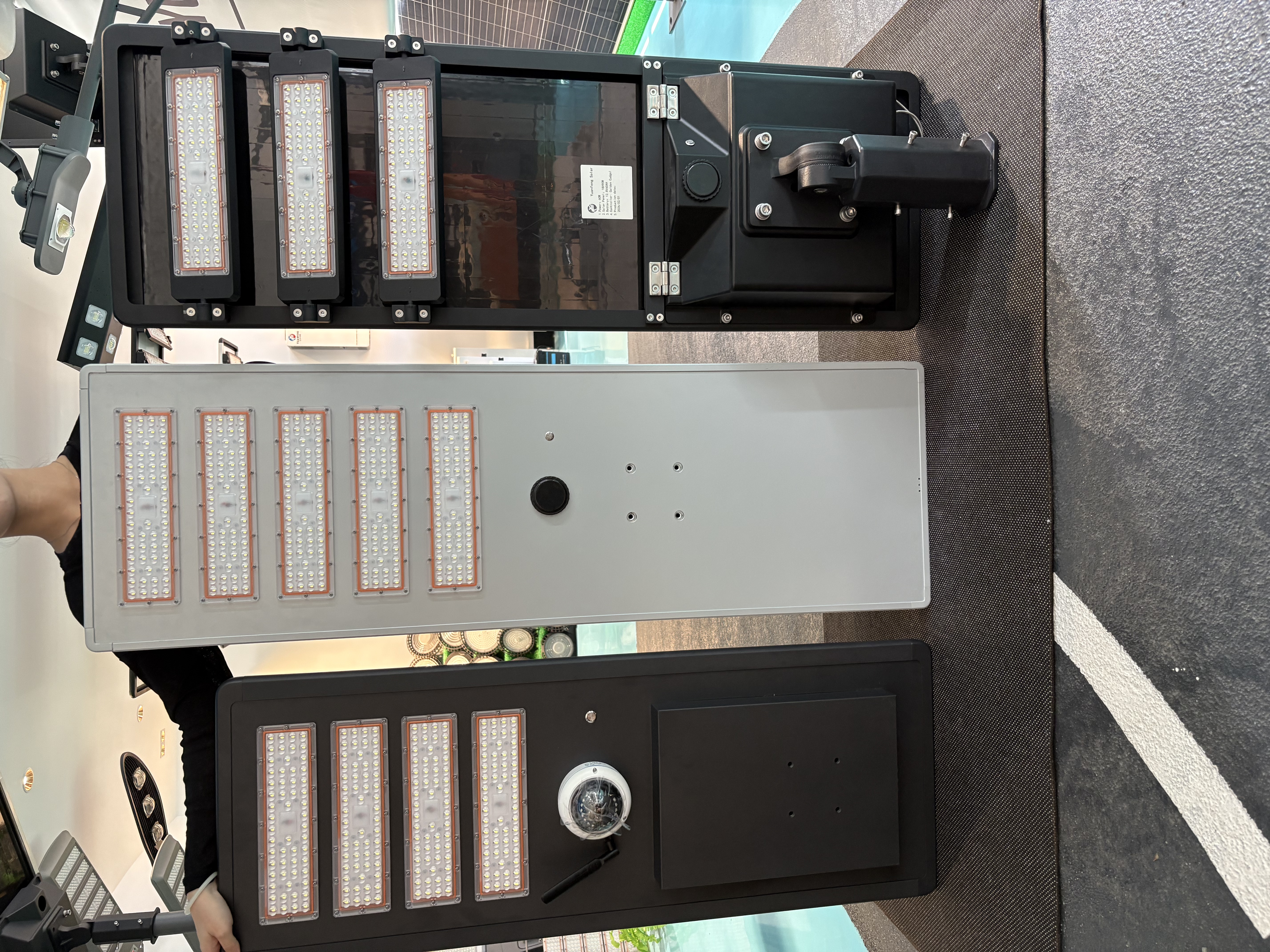

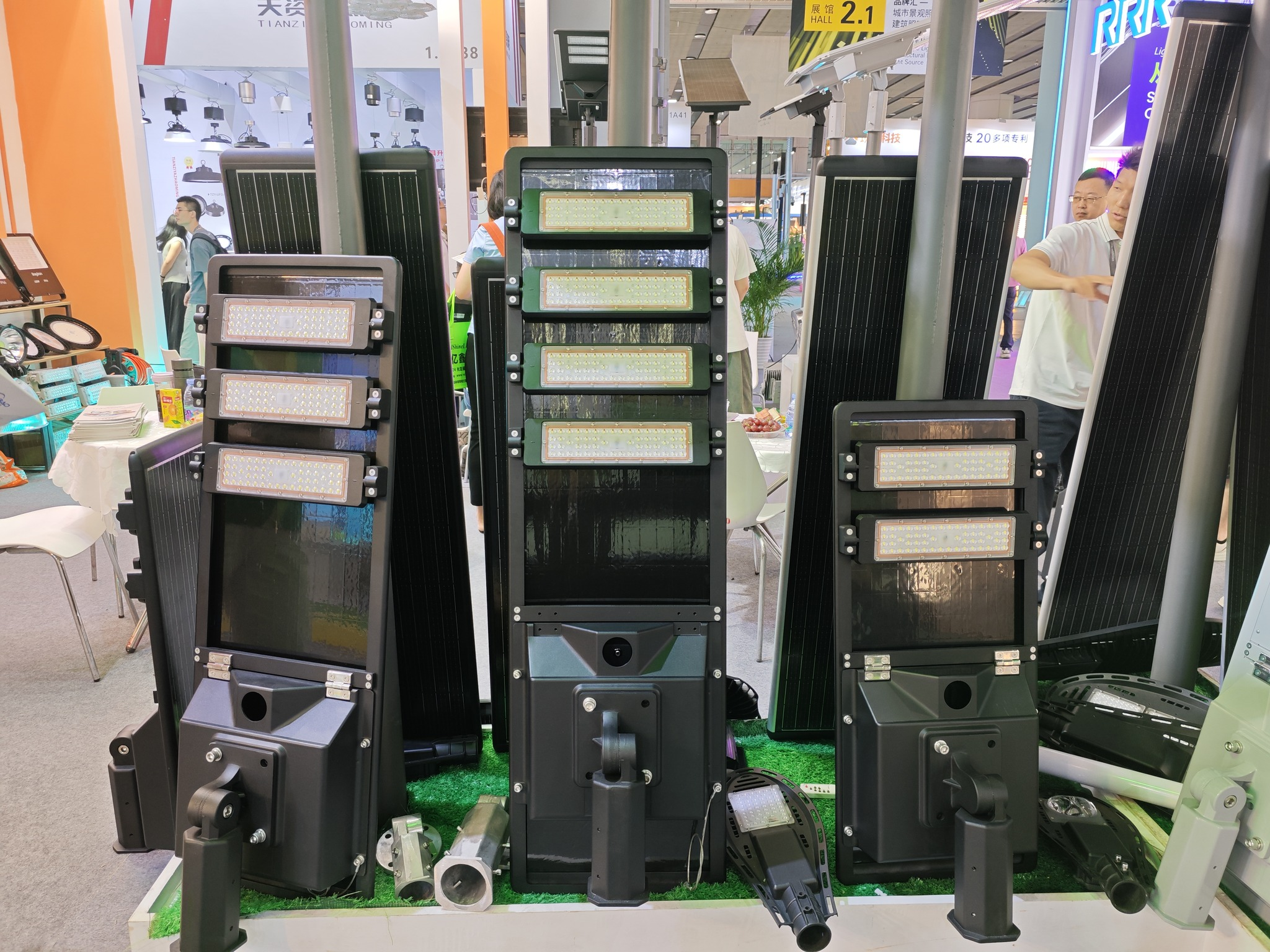

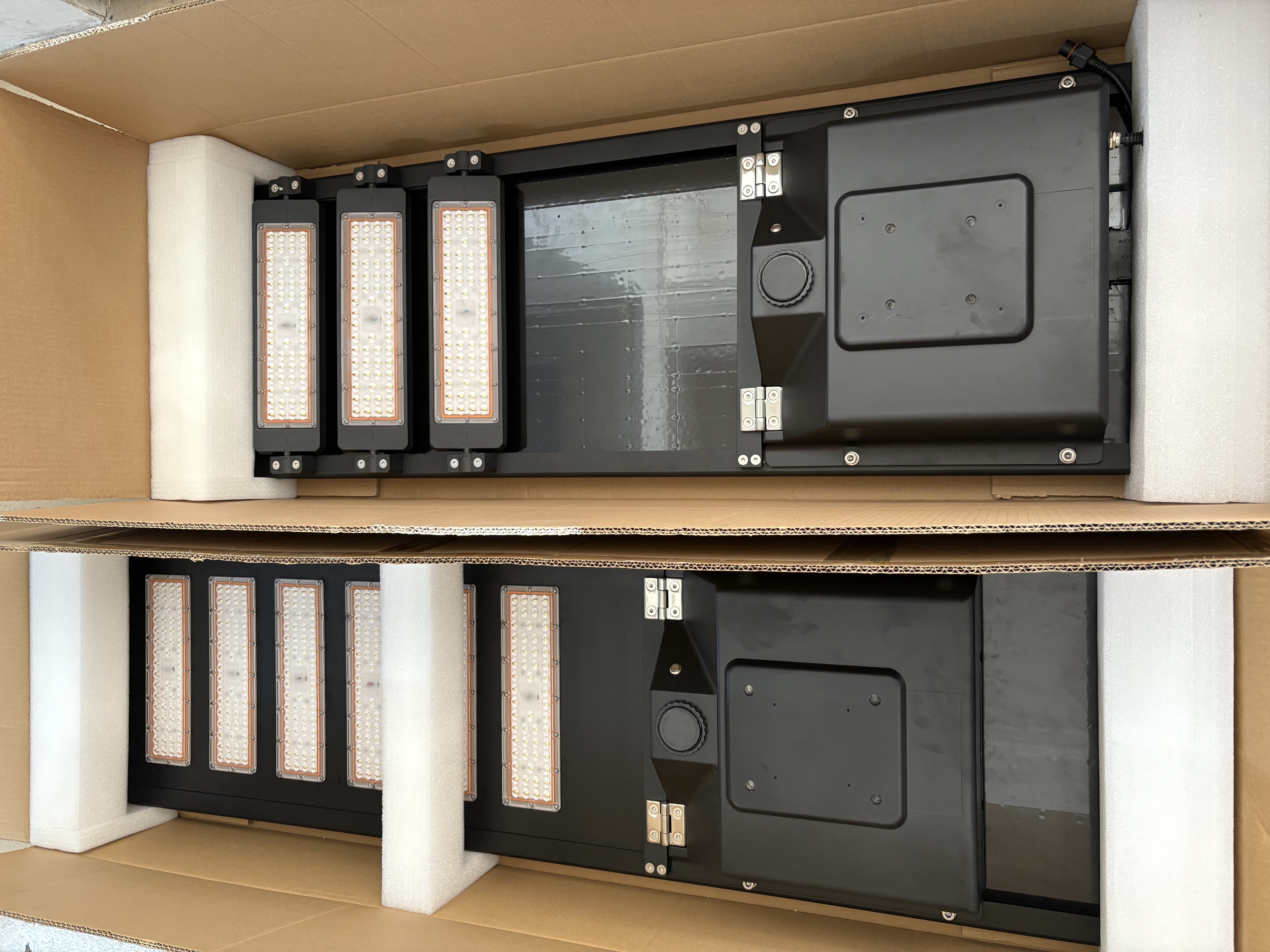

Factory pictures
