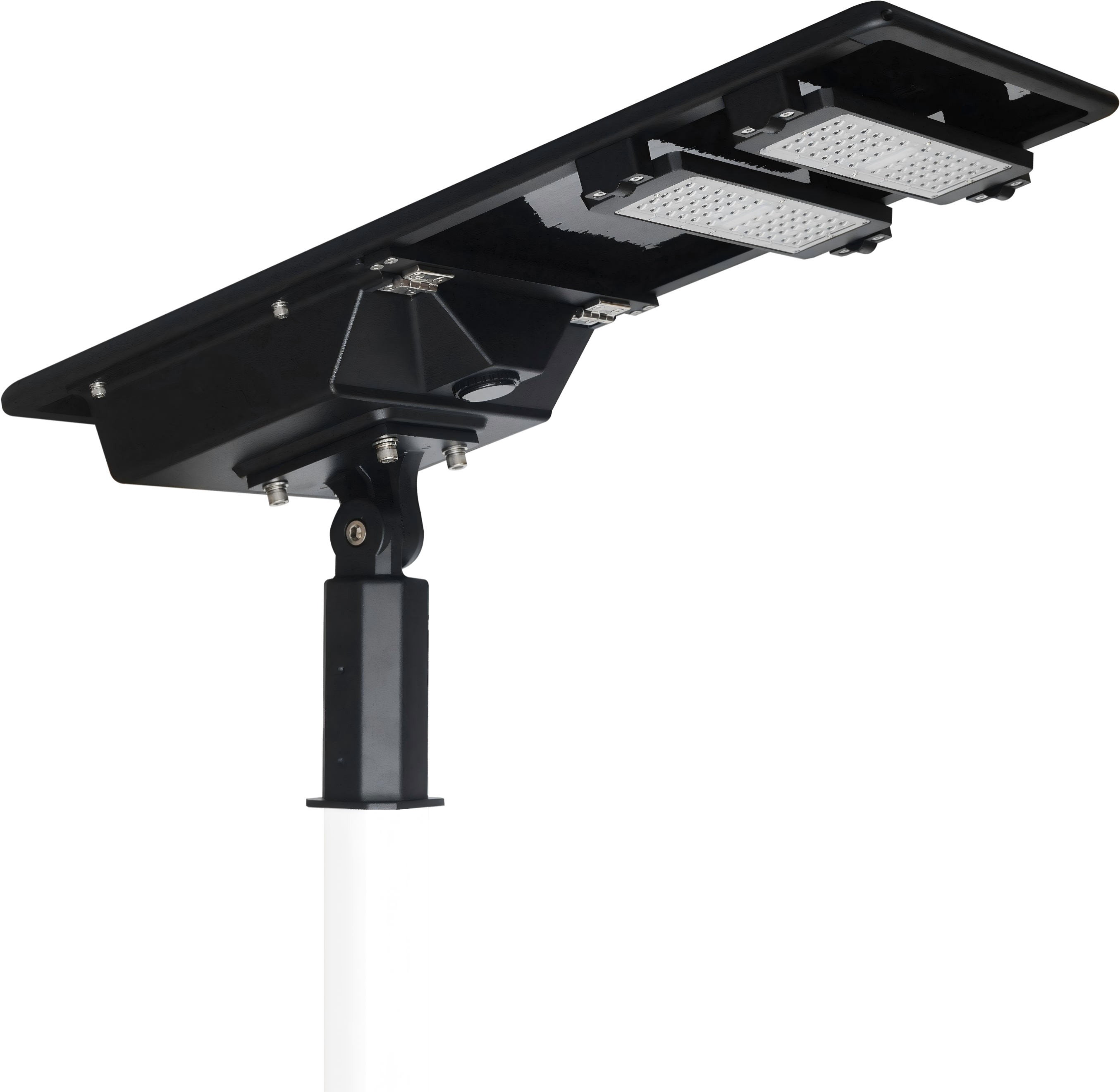

Multi-Angle adjustment AIO Solar Street Light
  • 🔹 Model: YF-A2M
  • 🔹 Power: 100W
  • 🔹 Monocrystalline Silicon Solar Panel
  • 🔹 PHILIPS LED Source with Janpen Teijin Lens
  • 🔹 High Capacity LiFePO4 Lithium Battery
  • 🔹 Die-Casting Aluminum Housing
  • 🔹 IP66 Waterproof Protection
  • 🔹 CE & RoHS Certified
Product Inquiry
Related

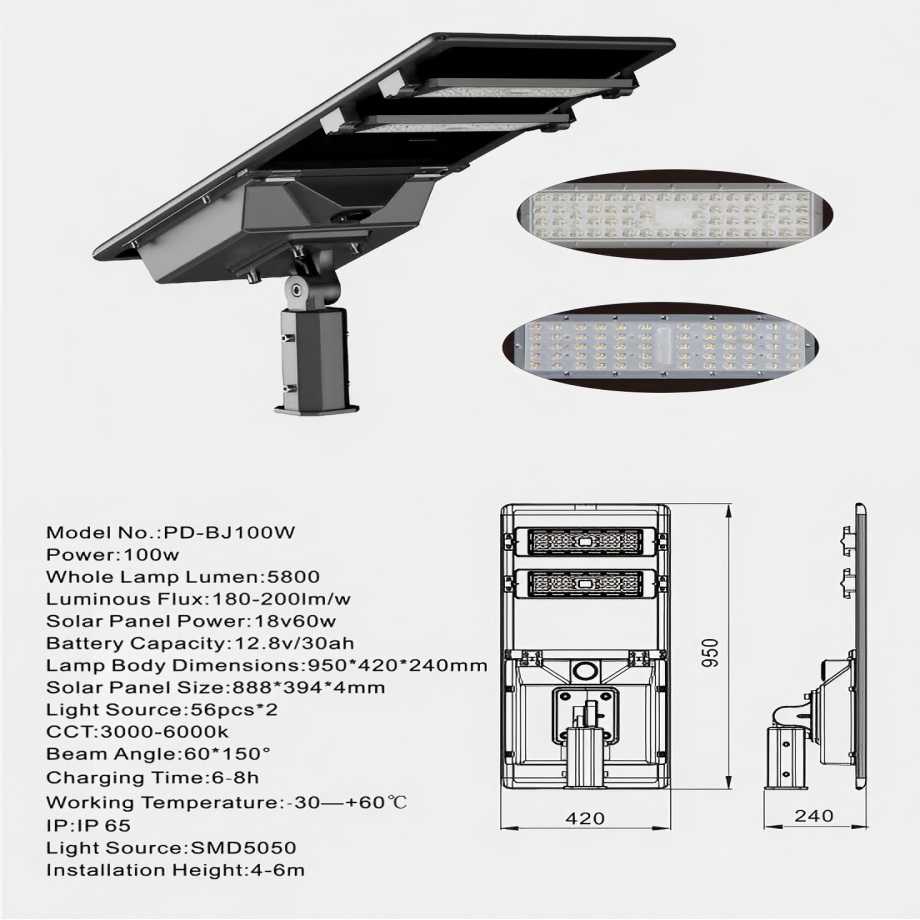

Technical Data

ModelYF-A2M
Solar panel60W/18V, MONO (888*394*4mm）
Rated power100W
MaterialDie-casting Aluminum
LED chipPhilips 5050 56PCS×2
Lumens10800LM
LiFePO4 battery

Option 1：30AH / 12.8V - 384WH

Option 2:  60AH /  3.2V  - 192WH

Install height6M
Spacing25-30M
Pole diameter58/76mm
Color temp.3000 / 4000 / 6500K
Work temp.-20℃ ~ +60℃ (When the temperature is below -10℃, derating use)
Water proofIP66
Charge time6–8H
Lighting timeLight on at dusk, Light off at dawn auto.
12 hours lighting time per day, 2 rainy days backup.
Size950 × 420 × 240MM

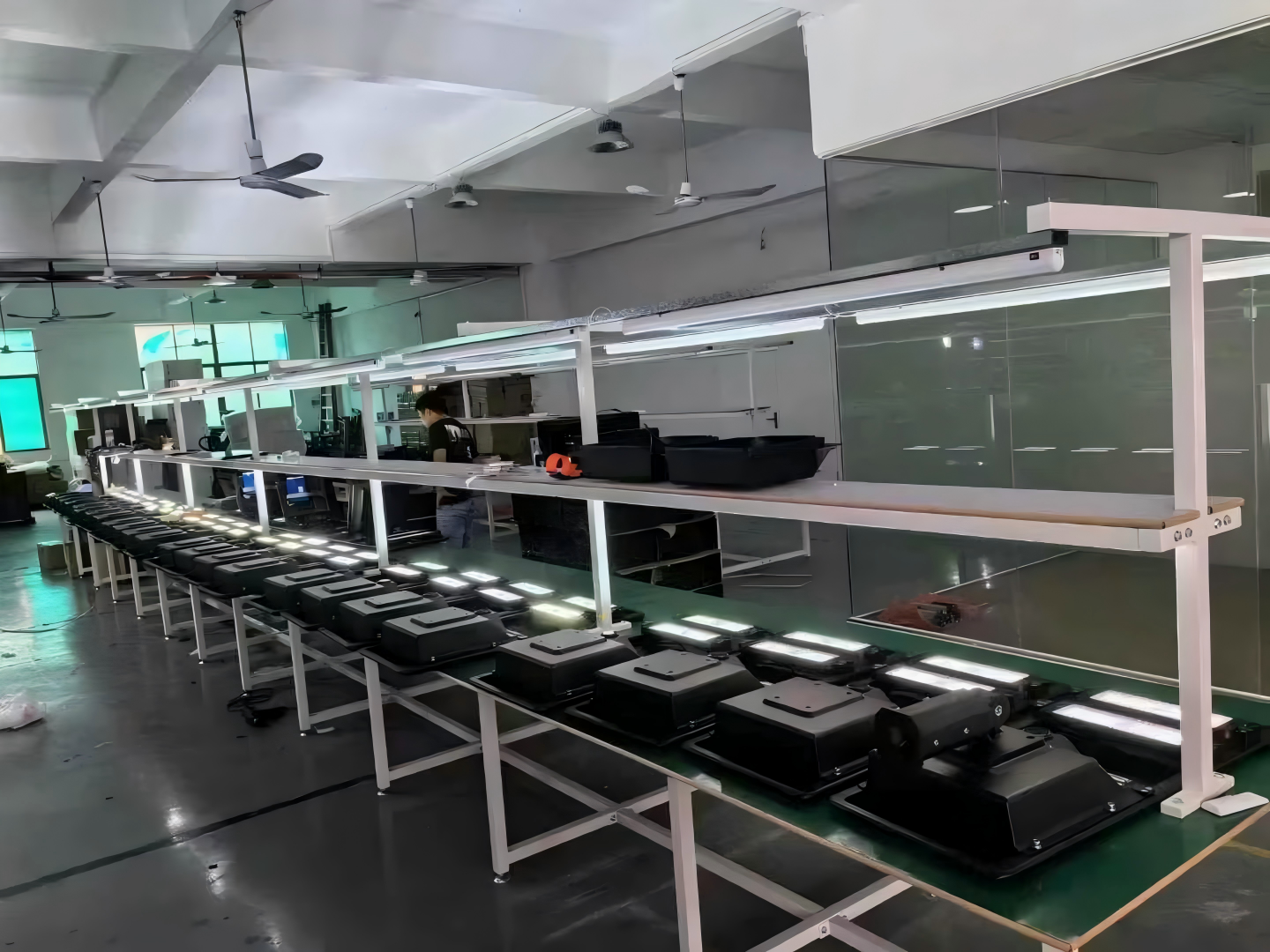

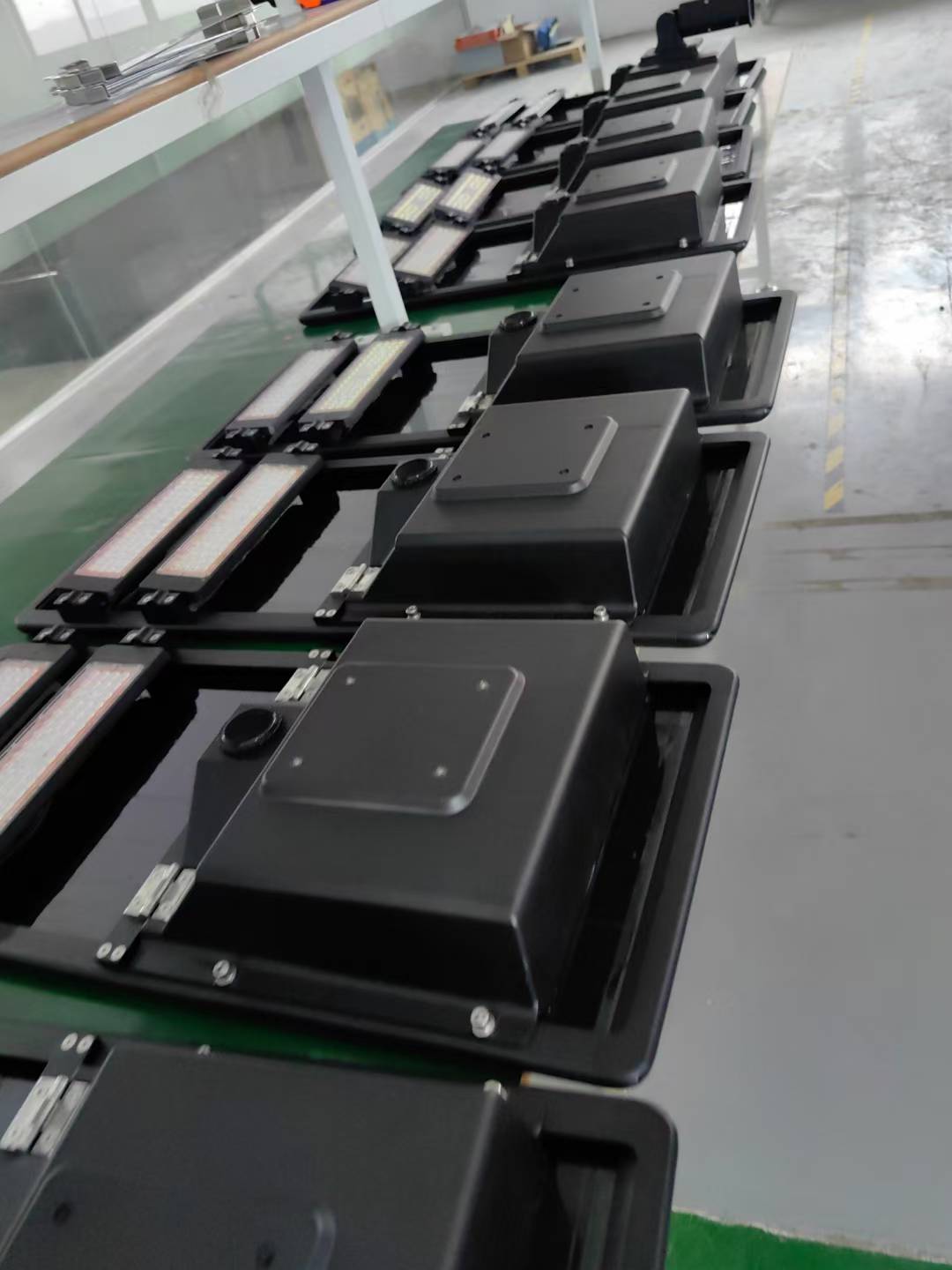

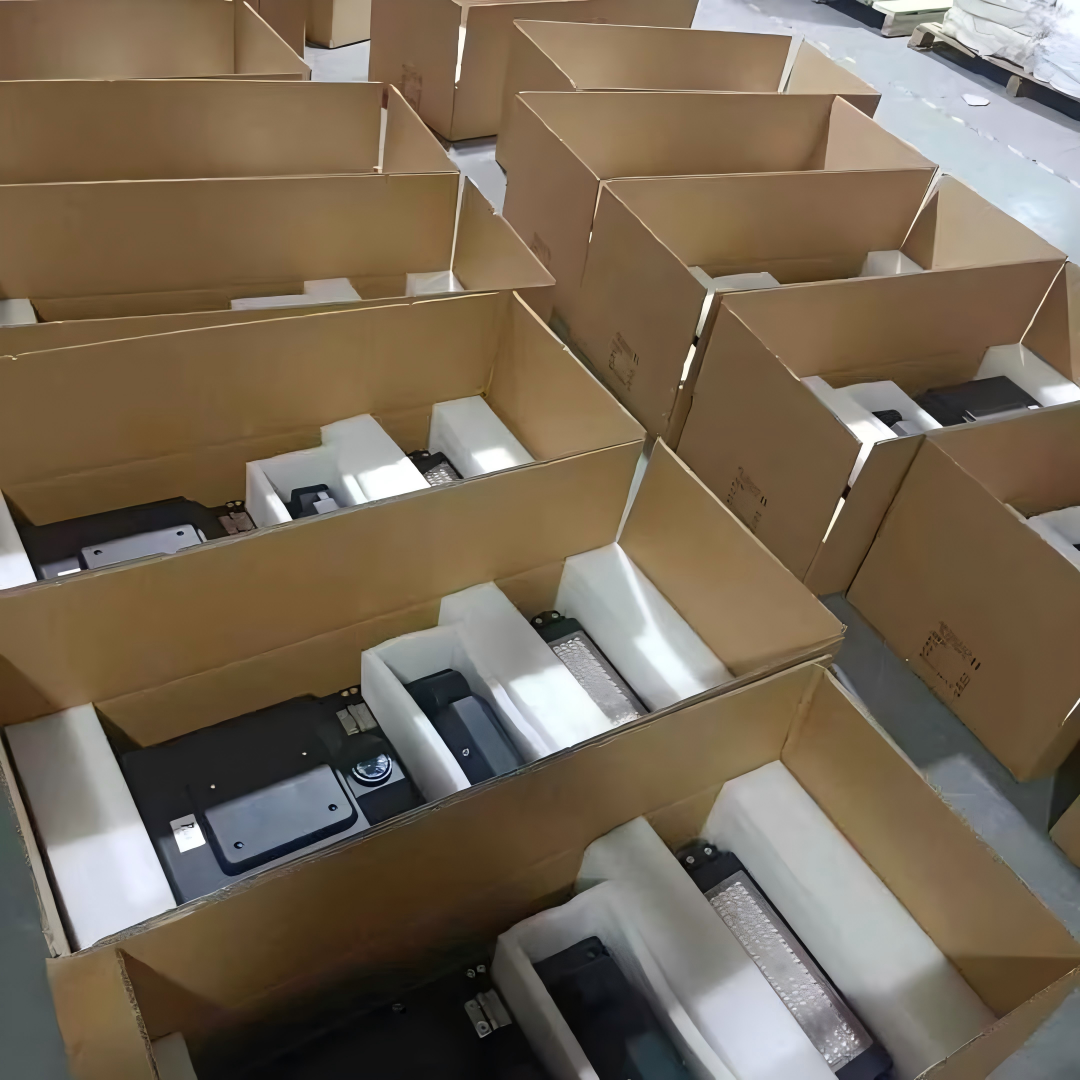

Factory pictures
