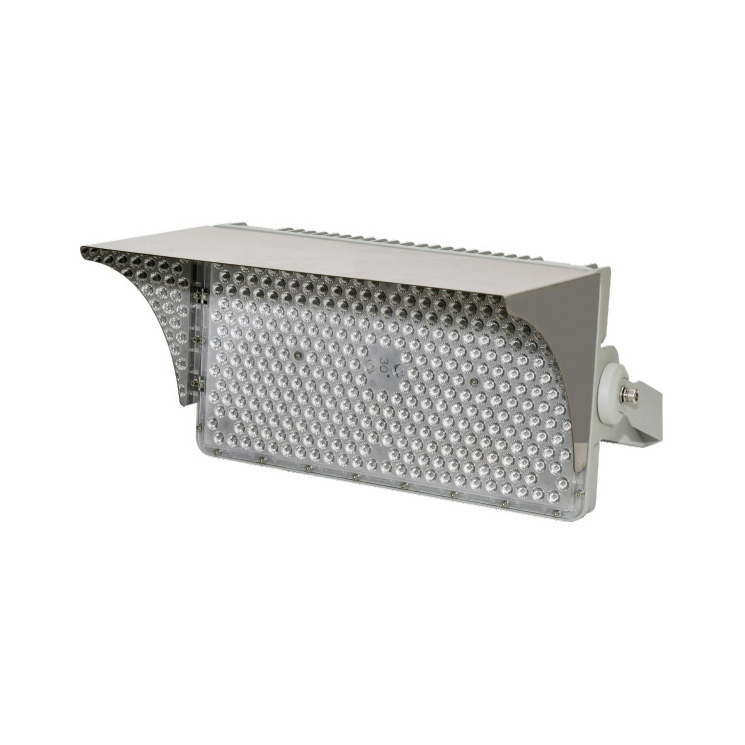

YF-STD-500W JINLI 500W STADIUM LIGHT SERIES

Certification:                     CE/3C/RoHs

Delivery Time:                  20-25 days

Payment Terms:               L/C,D/A,D/P,T/T

Efñcacy(LM/W):               160LM/W

Luminaire Net Weight   10.5 kgs

Luminous Flux              80000(+5%)LM

Material:                       Aluminum/PC lens

Start Port:                           Jiangmen,Guangdong

Supply Ability:                   3000PCS/Month



Key Features of the solar street light

1.500W LED delivers 75,000lm with CRI>90, ensuring broadcast-quality illumination for sports events.

2.APP-controlled zone dimming (30%-100%) cuts energy use by 40% during non-event hours.

3.IP65 waterproof, -30°C~60°C operation, resistant to salt spray and extreme climates

4.7-day operation in cloudy weather, pre-assembled 3M pole installed in 20 minutes.

Apllication

1.Football fields, rugby pitches, and tracks meeting FIFA/IAFF lighting standards.

2.Community basketball courts and school tennis courts with pro-level lighting.

3.Outdoor theaters and festival stages enhanced by high CRI lighting.

Advantages

1.Glare-Free: Honeycomb optics eliminate glare for players and spectators.

2.Rapid Setup: Modular design enables 30-minute installation.

3.Carbon Neutral: Complies with global low-carbon venue standards.


ModelSystem Power ConsumptionLED Power Consumption
Power Frequency
Size(mm)Parameter
YF-STD-500W                      500W

                       450W

50/60Hz
519*367*217

1. Light source: 3030*352pcs

2. Color temperature: 5000K-6500K

3. Light efficiency: 160LM/W

4. CRI: >70

5. Total lumen: 80000 (±5%) LM

6. Angle: 15/30/40/60

7. Input voltage: 90-305V

8. Output voltage: 48V

9. Lightning protection level: 4KV/6KV

10. Storage temperature: -30~+50℃

11. Working temperature: -30~+50℃

12. Waterproof level: IP65

13. Outer box size: 600*400*250mm

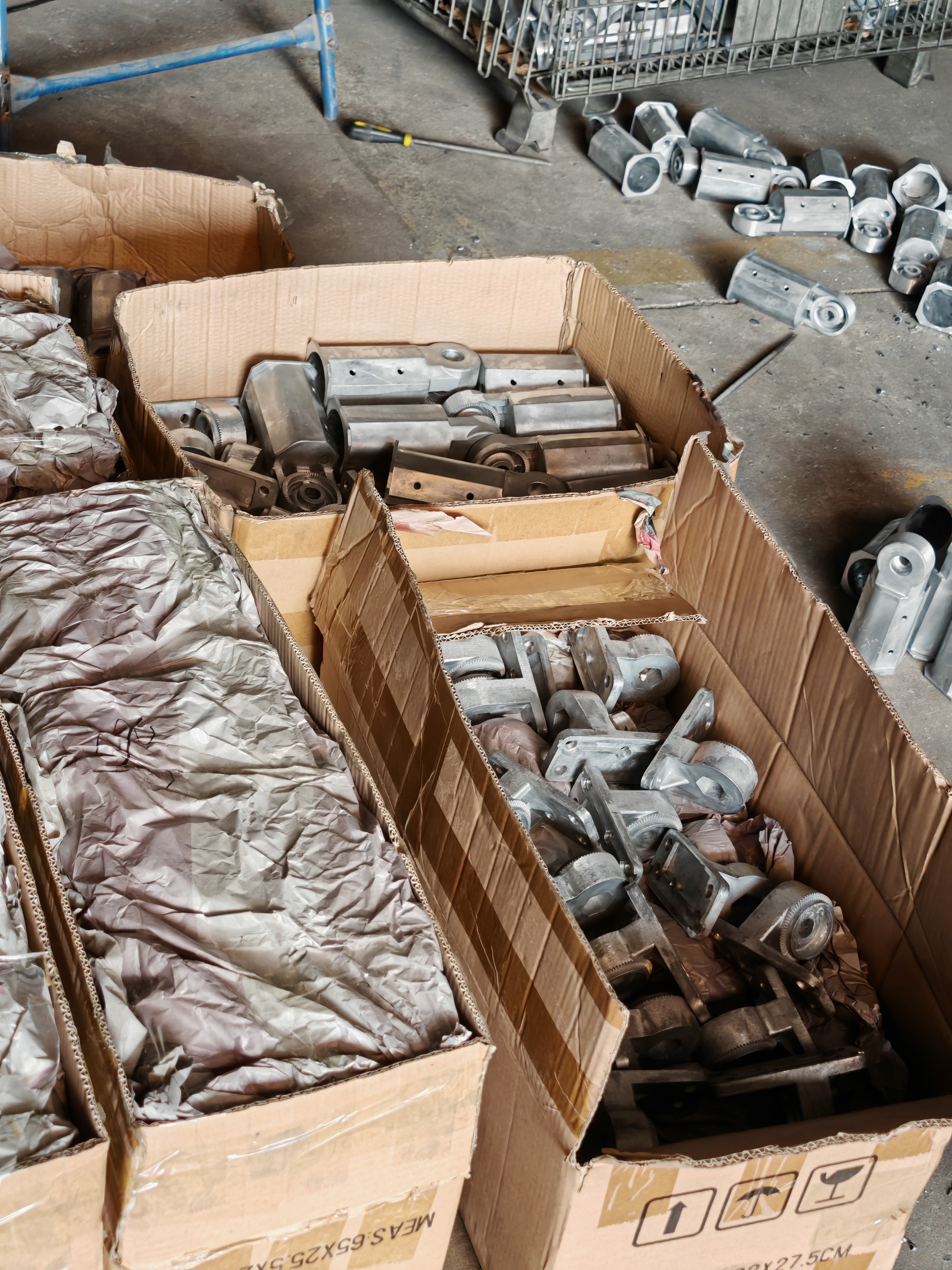

Factory pictures
