Model

YF-GKD80W

Optical data

LED type

TYF #2835*544pcs

Correlated color temperature

5000K~6500K（optional）

System effectiveness

180(±5%)LM/W

Color Rendering Index

Ra＞70 or 80

luminous flux

14400(±5%)LM

Beam angle

45°60°90°

Electrical data

Power supply

Infineon Power Supply

Power frequency

50~60Hz

Input voltage

AC 100-277V

Input surge protection

4KV

Power factor

≥0.9

Harmonic distortion

THD<20%

Other

System power consumption

80W

Bonding temperature (Tj)

<80℃(Ta=30℃)

LED power consumption

80W

Storage temperature

-30～+50℃

Fixture material

Aluminum+PC lenses

Operating Temperature

-30～+50℃

Anti intrusion protection

IP65

Operating Humidity

15~90%RH

Net weight of lighting fixtures

3.59Kg

Overall Dimensions

32*30.9*24.5cm

LED lifespan

>5Years (Ta=25℃@L70)

Export carton size

Optional information

Sand black

Physical dimensions

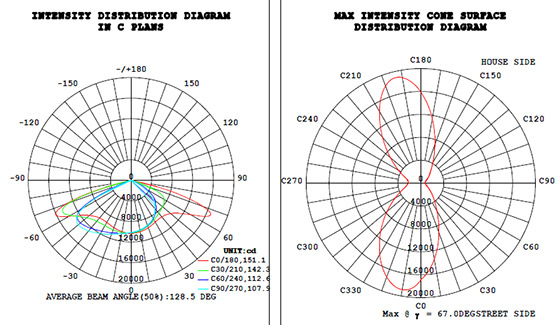

Light distribution curve-150×70°
