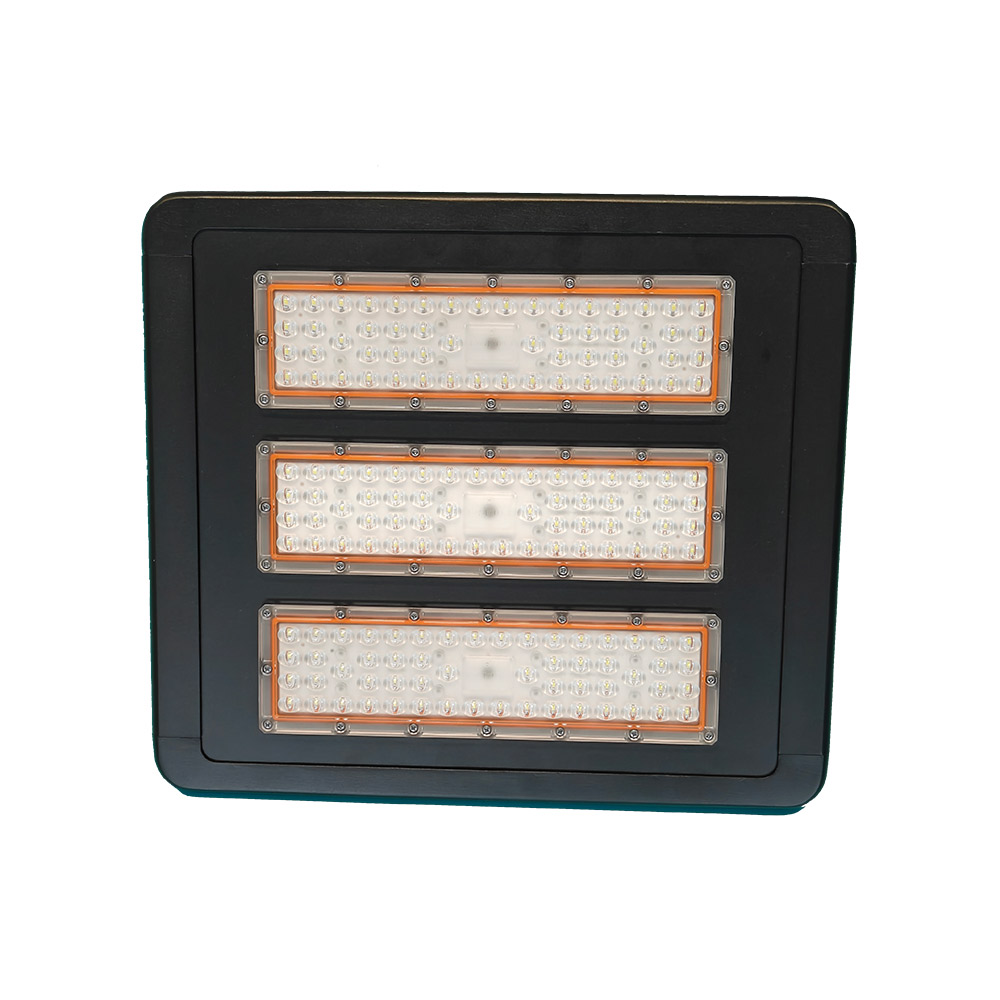

| Model | YF-HA |
| Solar panel | 100W/18V, MONO (815×670×30MM) |
| Rated power | 60W |
| Material | Die-casting Aluminum |
| LED chip | Philips 5050 56PCS×3 |
| Lumens | 10800LM |
| LiFePO4 battery | 100AH / 3.2V-320WH |
| Install height | 6M |
| Spacing | 25-30M |
| Installtion method | Bracket Mount / Wall Mount / Pole Mount / Ground Mount |
| Color temp. | 3000 / 4000 / 6500K |
| Work temp. | -20℃ ~ +60℃ (When the temperature is below -10℃, derating use) |
| Water proof | IP65 |
| Charge time | 6–8H |
| Lighting time | Light on at dusk, Light off at dawn auto. 12 hours lighting time per day, 2 rainy days backup. |
| Size | 420 × 375MM |

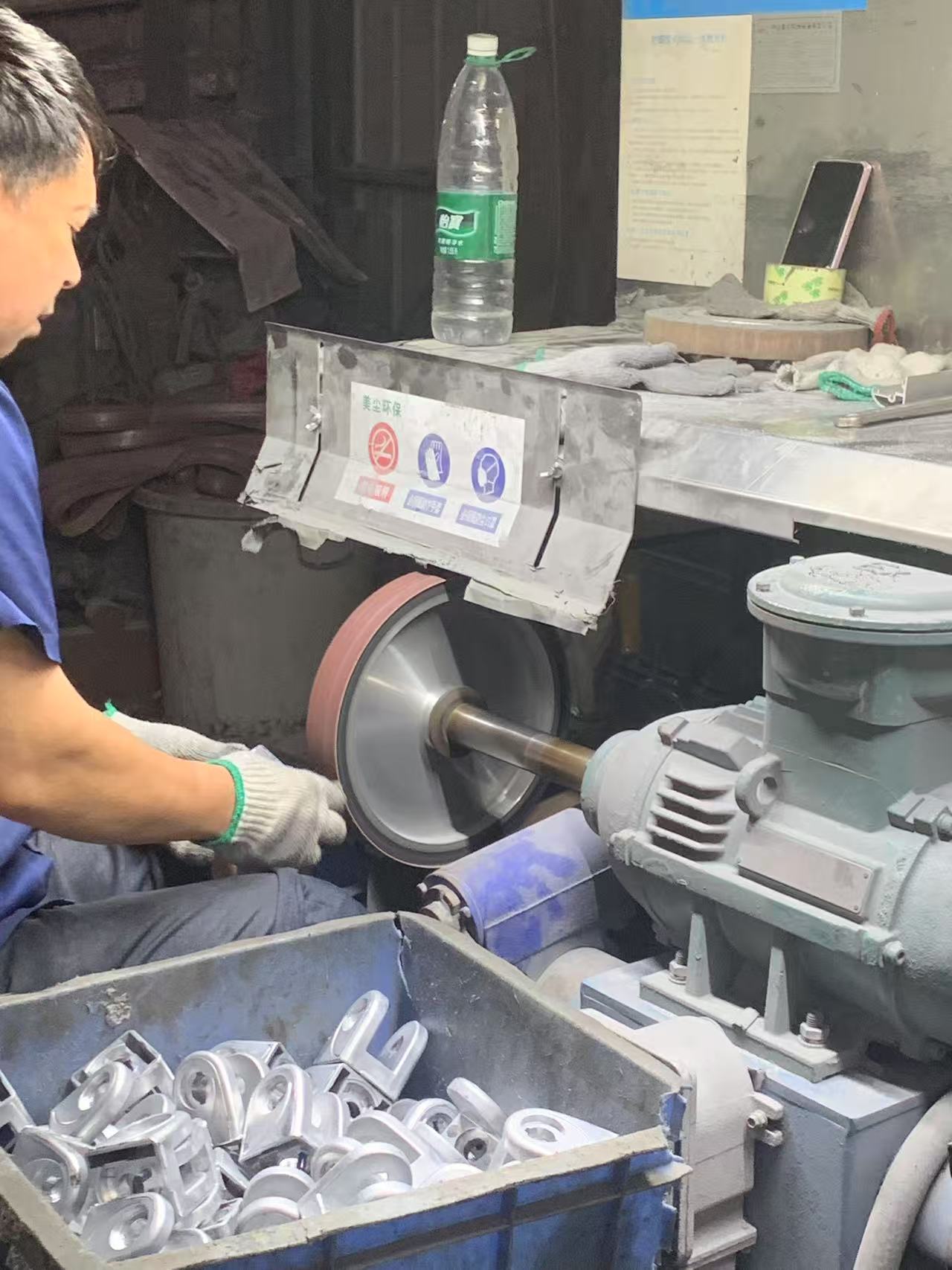

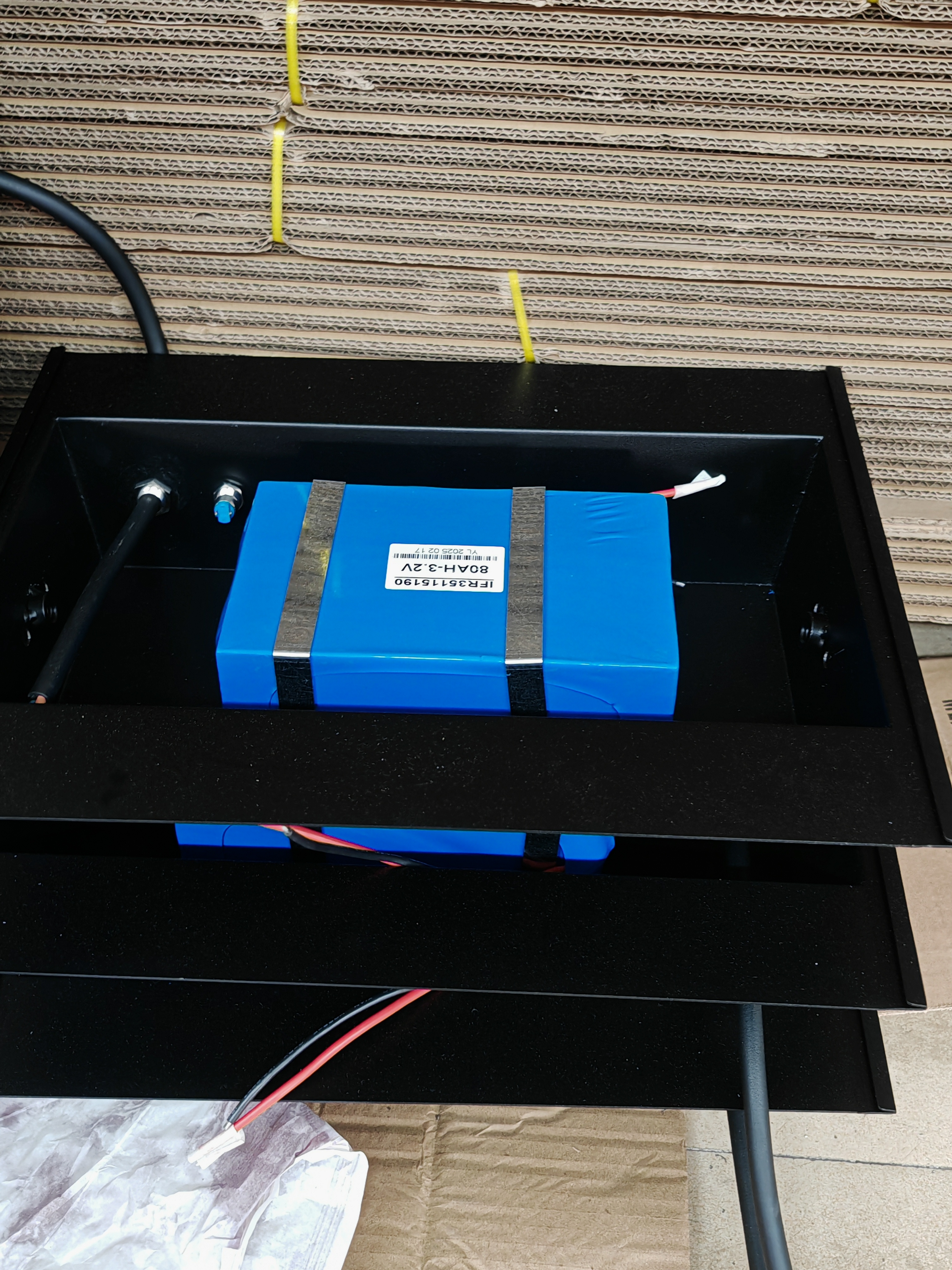

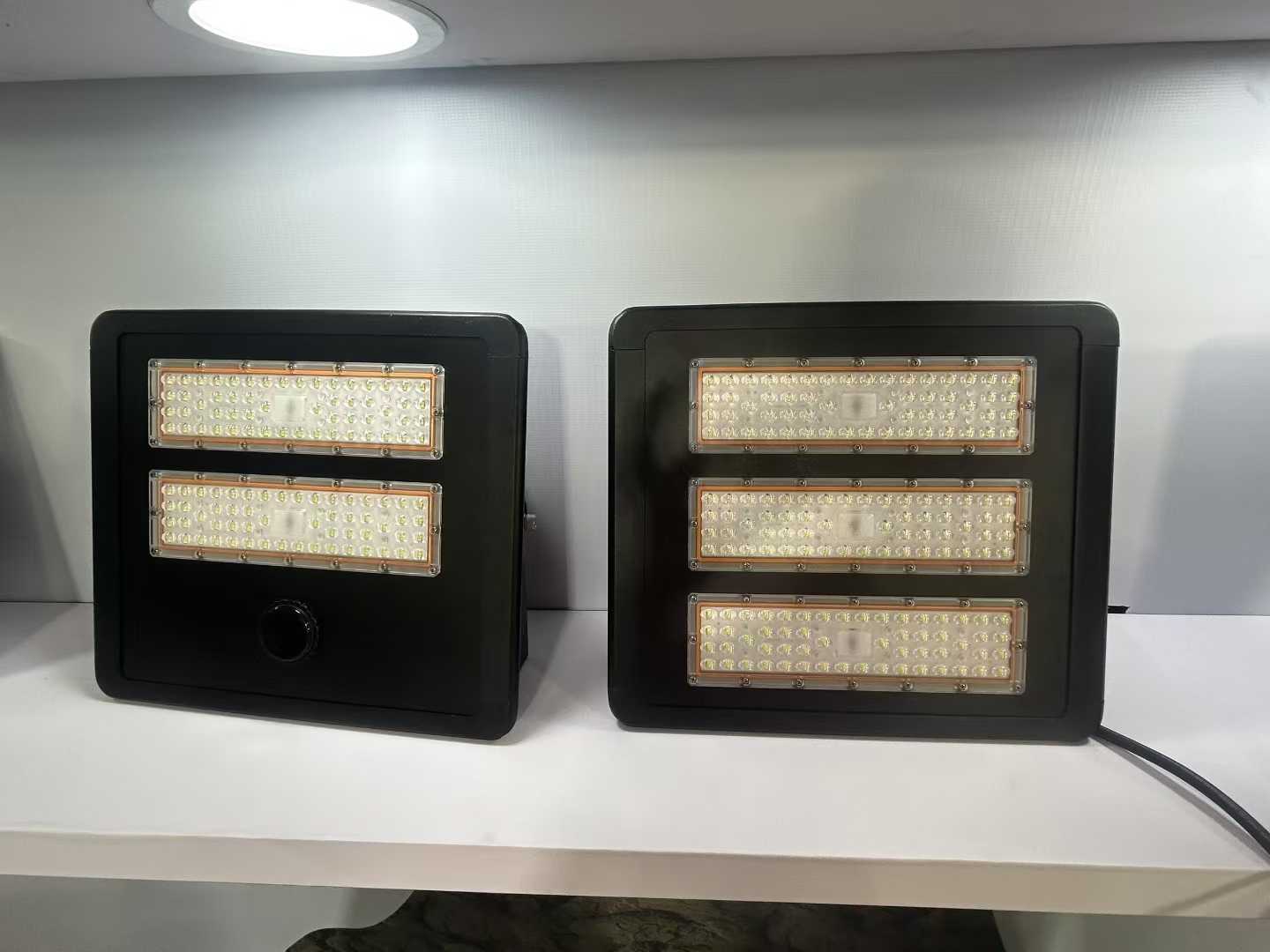

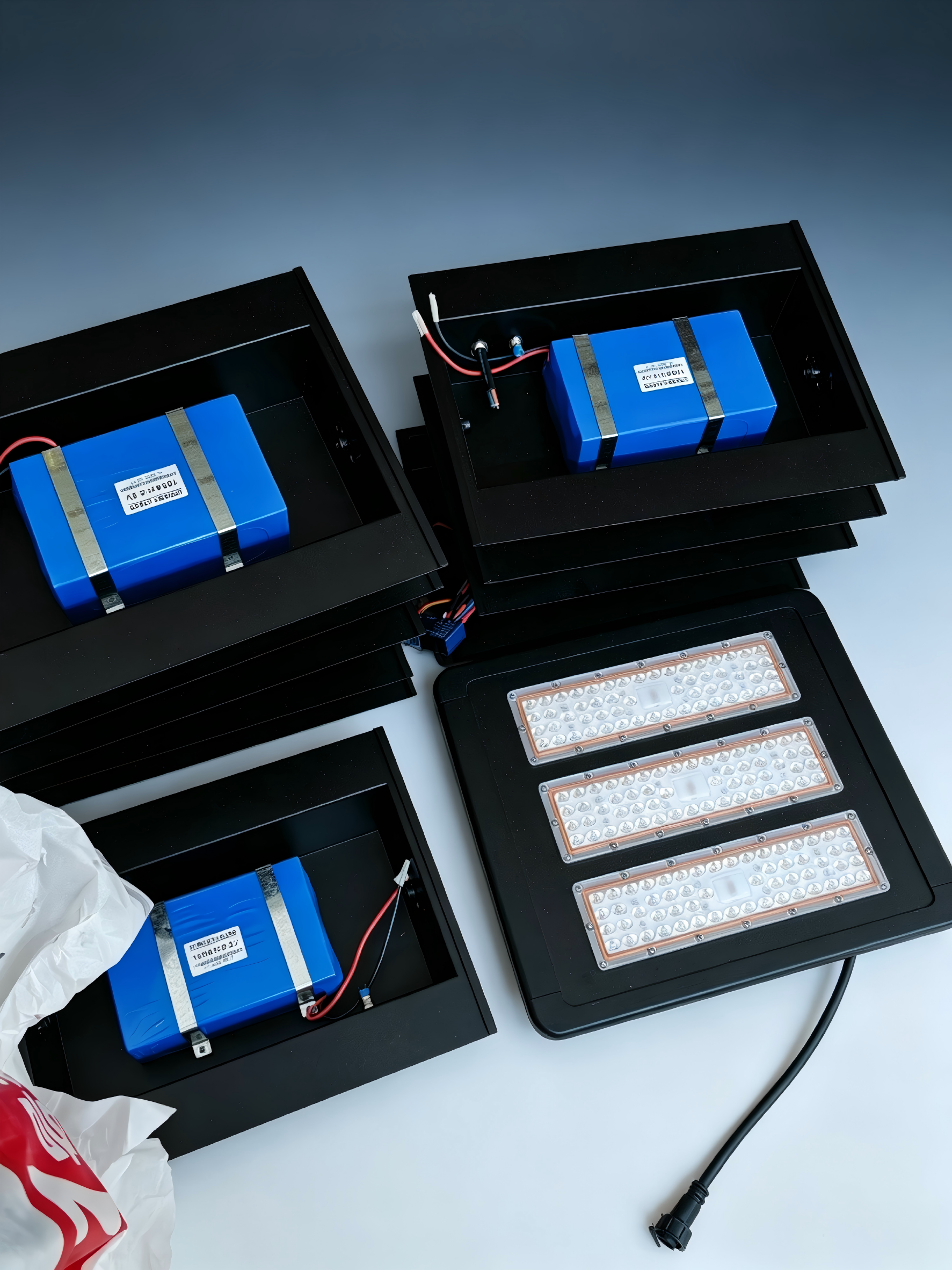

Factory pictures
