Multi-12 LED All-in-One Solar Street Light Outdoor
  • 🔹 Model: YF-T6M
  • 🔹 Power: 30W / 40W / 60W / 80W / 100W / 120W
  • 🔹 Monocrystalline Silicon Solar Panel
  • 🔹 PHILIPS LED Source with Japen Teijin Lens
  • 🔹 High Capacity LiFePO4 Lithium Battery
  • 🔹 Die-Casting Aluminum Housing
  • 🔹 IP65 Waterproof Protection
  • 🔹 CE & RoHS Certified
Product Inquiry
Related

Technical Data

ModelYF-OCT-12E
Solar panel80W/18V, MONO
Rated power60W
MaterialDie-casting Aluminum
LED chipPhilips 5050 56PCS×12
Lumens10800LM
LiFePO4 battery150AH / 3.2V-480WH
Install height6-8M
Spacing25-30M
Pole diameter58/76mm
Color temp.3000 / 4000 / 6500K
Work temp.-20℃ ~ +60℃ (When the temperature is below -10℃, derating use)
Water proofIP65
Charge time6–8H
Lighting timeLight on at dusk, Light off at dawn auto.
12 hours lighting time per day, 2 rainy days backup.
Size1250 × 400 × 50MM

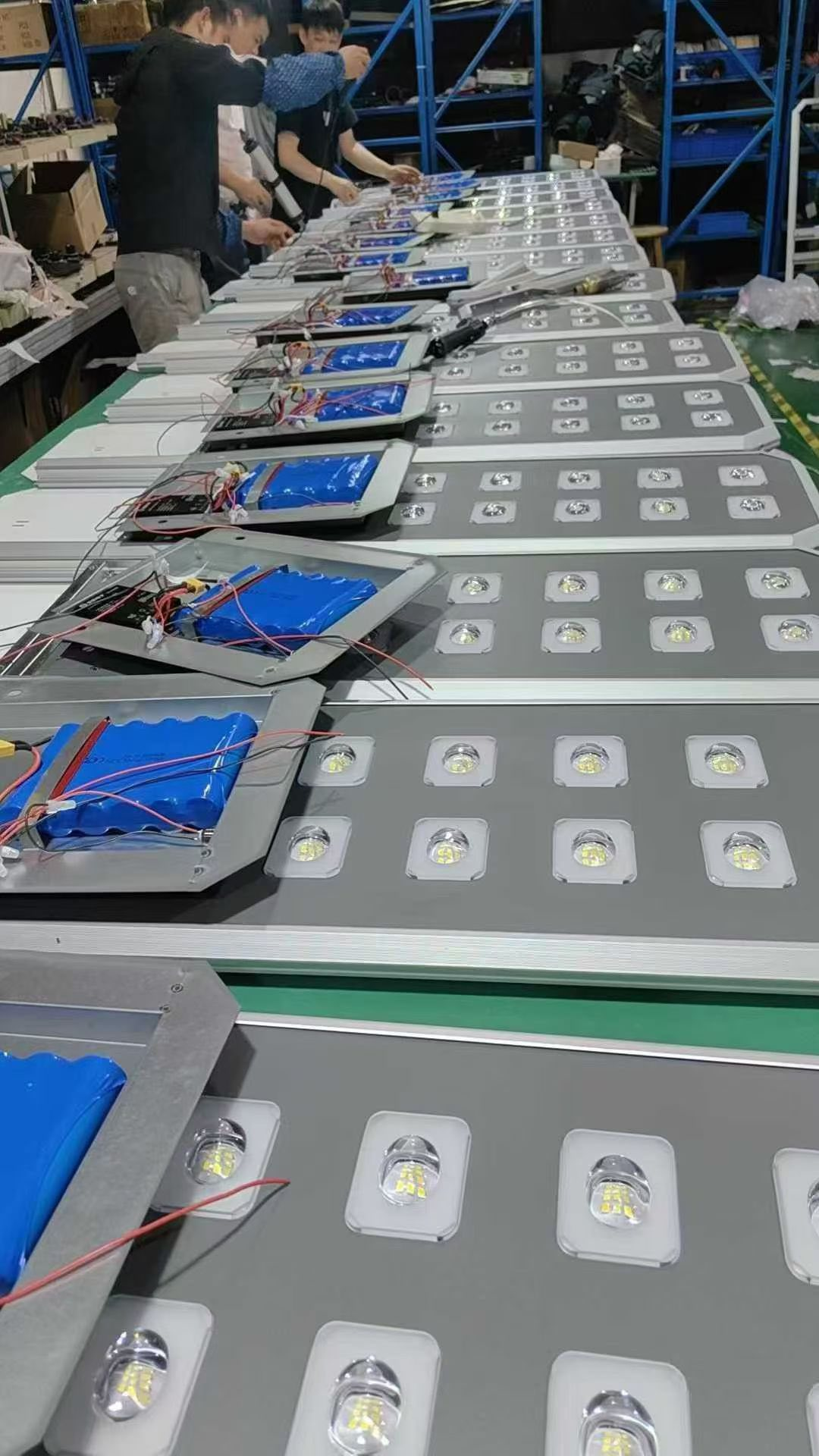

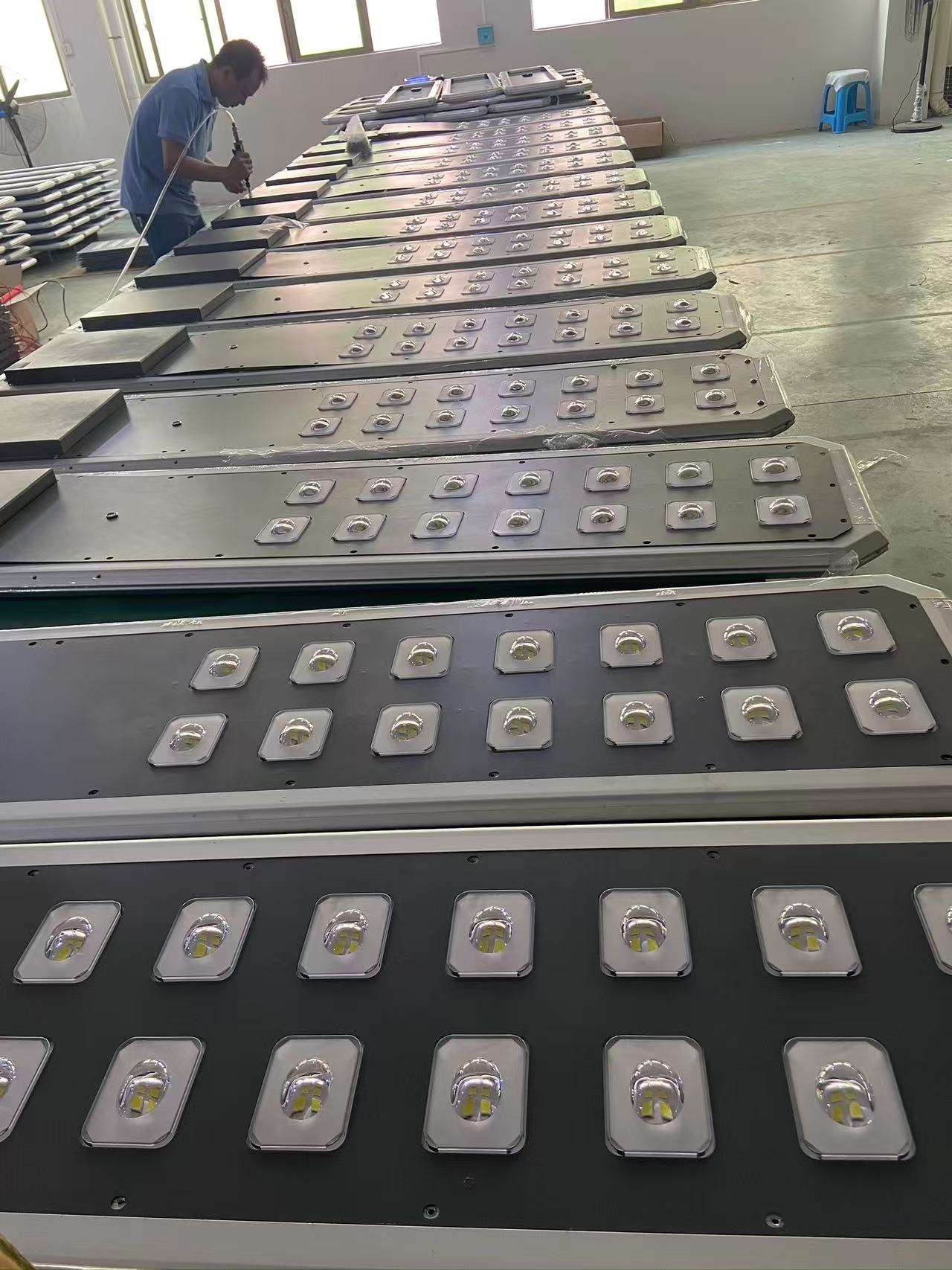

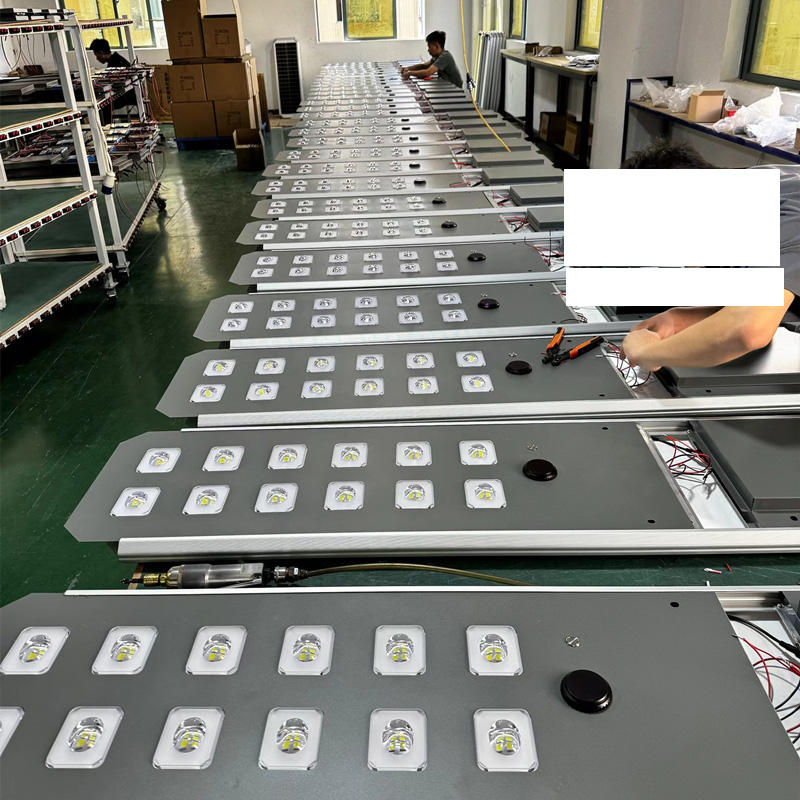

Factory pictures
