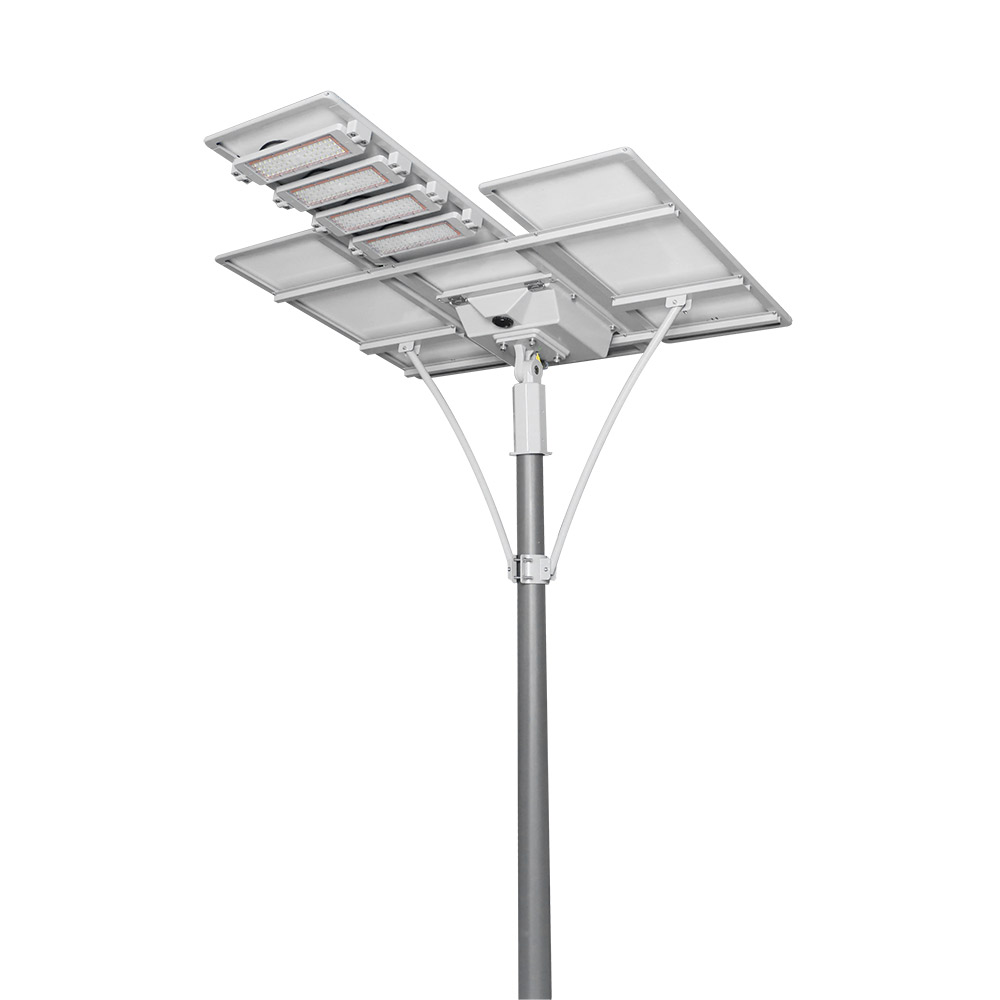

YF-SS-4M-150W SPACE STATION INTEGRATED SOLAR STREET LIGHT SERIES

Certification:           CE/3C/RoHs

Delivery Time:        20-25 days

Payment Terms:      L/C,D/A,D/P,T/T

Charging Time:       4.5 hours

Discharging Time:  12 hours

Lumen:                    180lm/w

Material:                  Die-casting Aluminum

Install Height:          8-12m

Start Port:                Jiangmen,Guangdong

Supply Ability:         3000PCS/Month



Key Features of the solar street light

1.Aerospace-grade PERC cells with 25% efficiency, 100W output equals 150W conventional lighting.

2.IP65K rated, operates in -50°C~80°C, withstands sandstorms and polar hail, 15+ years lifespan.

3.5-day operation in cloudy weather, -30°C cold start, 10+ years lifespan.

4.Pre-assembled 6M pole, installed in 1 hour with wall/pole mounting options.

Apllication

1.Polar research stations, desert highways, and high-altitude outposts.

2.24/7 lighting for oil fields and mines with explosion-proof structure.

3.Lighting for aerospace launch sites and border patrols in EMI-heavy zones.

4.Emergency lighting for disaster zones with flood/shock resistance

Advantages

1.Unmatched Durability: Titanium-carbon fiber composite resists corrosion and UV damage.

2.Zero Maintenance: Self-cleaning panel + remote diagnostics, 10-year hands-free operation.

3.Sustainability: Reduces 2.5T CO₂ annually per light, aligns with UN SDG7.



ModelPowerSolar panelBattery capacitySize(mm)Parameter
YF-SS-5M-150W150W


250W


12.8V90AH1420*1267*180

1. Lamp body material: aviation aluminum 6063

2. Solar panel: 250W

3. Lamp body size: 1420*1267*180

4. Nominal lamp power: 150W

5. Discharge time: 12h

6. Battery capacity: 12.8V90AH

7. Battery operating temperature: high temperature 60 -- low temperature -30

8. Light source: SMD5050

9. Lamp beads: 56PCS*4

10. Whole lamp lumen: 27000lm

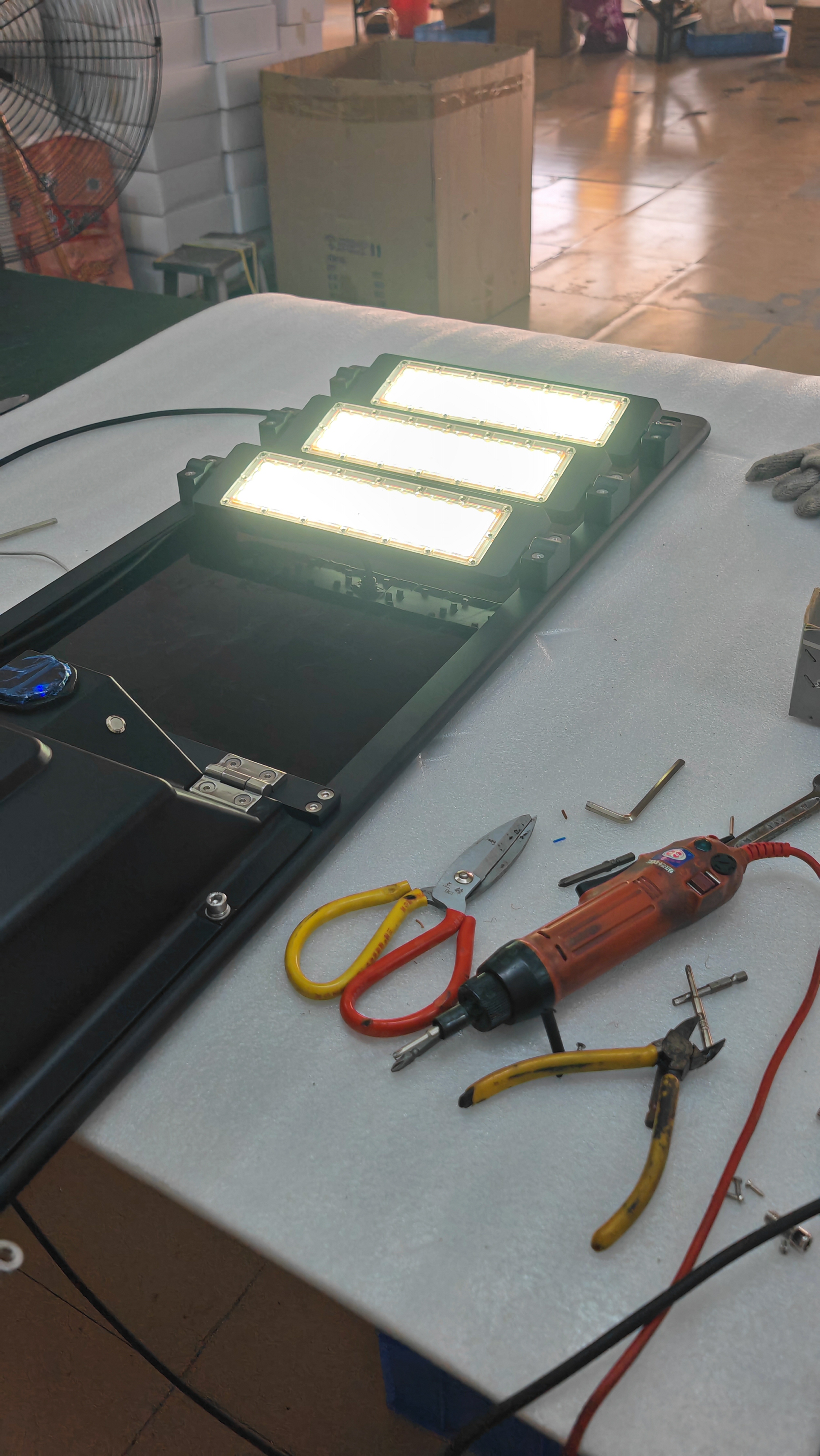

Factory pictures
