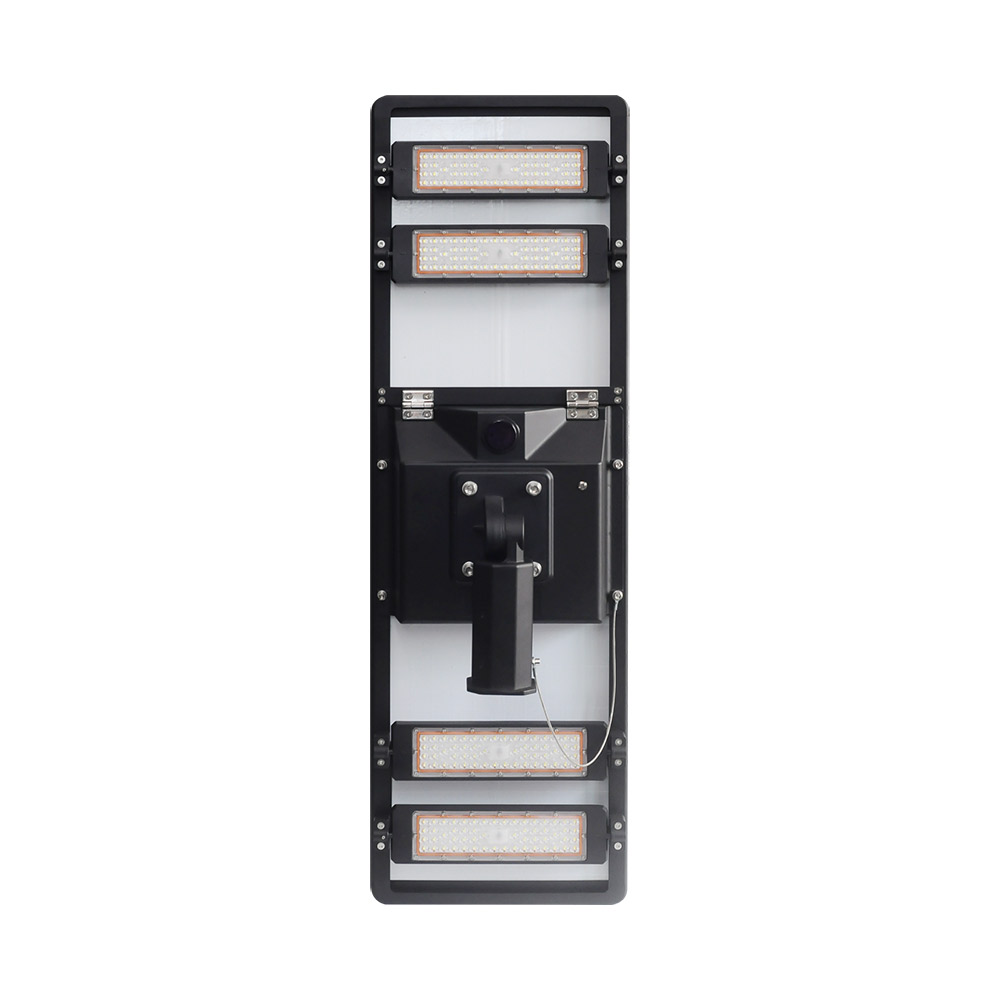

YF-DL-4M-200W Double-lane electric adjustment Integrated Solar Street light series

Certification:             CE/3C/RoHs

Delivery Time:         20-25 days

Payment Terms:      L/C,D/A,D/P,T/T

Charging Time:        6-8 hours

Discharging Time:  30-36 hours

Lumen:                      180-200lm/w

Material:                  Die-casting Aluminum

Install Height:              4-6m

Start Port:                      Jiangmen,Guangdong

Supply Ability:            3000PCS/Month

Key Features of the solar street light

1.Monocrystalline PERC cells with 23% efficiency, maximizing energy output per square mete

2.Anti-PID, salt mist corrosion resistance, stable performance in extreme climates with 25-year linear power warranty.

3.Lightweight (22kg) design compatible with diverse mounting systems for easy rooftop/ground installation.

4.15% higher energy yield in low-light conditions, ideal for cloudy regions.

Apllication

1.Residential rooftop systems for self-consumption and feed-in tariff programs.

2.Commercial & industrial distributed energy solutions for carbon reduction.

3.Off-grid systems with battery storage for remote areas.

4.Agrivoltaic solutions for greenhouses and irrigation systems..

Advantages

1.High ROI: Low degradation (≤2% first year) ensures stable long-term returns.

2.Plug-and-Play: Pre-installed terminals enable 2-hour setup.

3.Eco-Friendly: Zero emissions, compatible with renewables.

4.Extreme Weather Resistance: 5400Pa load capacity for heavy snow and strong winds.

ModelPowerSolar panelBattery capacitySize(mm)Parameter
YF-DL-4M-200W200W


18V120W
1296*394*4mm


12.8V60AH1360*420*240

Model No.:PD-BJ200W

Power:200w

Whole Lamp Lumen:11600

Luminous Flux:180-200lm/w

Solar Panel Power:18v120w

BatteryCapacity:12.8v/60ah

Lamp Body Dimensions:1360*420*240mm

Solar Panel Size:1296*394*4mm

Light Source:56pcs*4CCT:3000-6000k

Beam Angle:60*1509

Charging Time:6-8h

Working Temperature:-30-+60℃

IP rating:IP 65

Light Source:SMD5050

Installation Height:4-6m

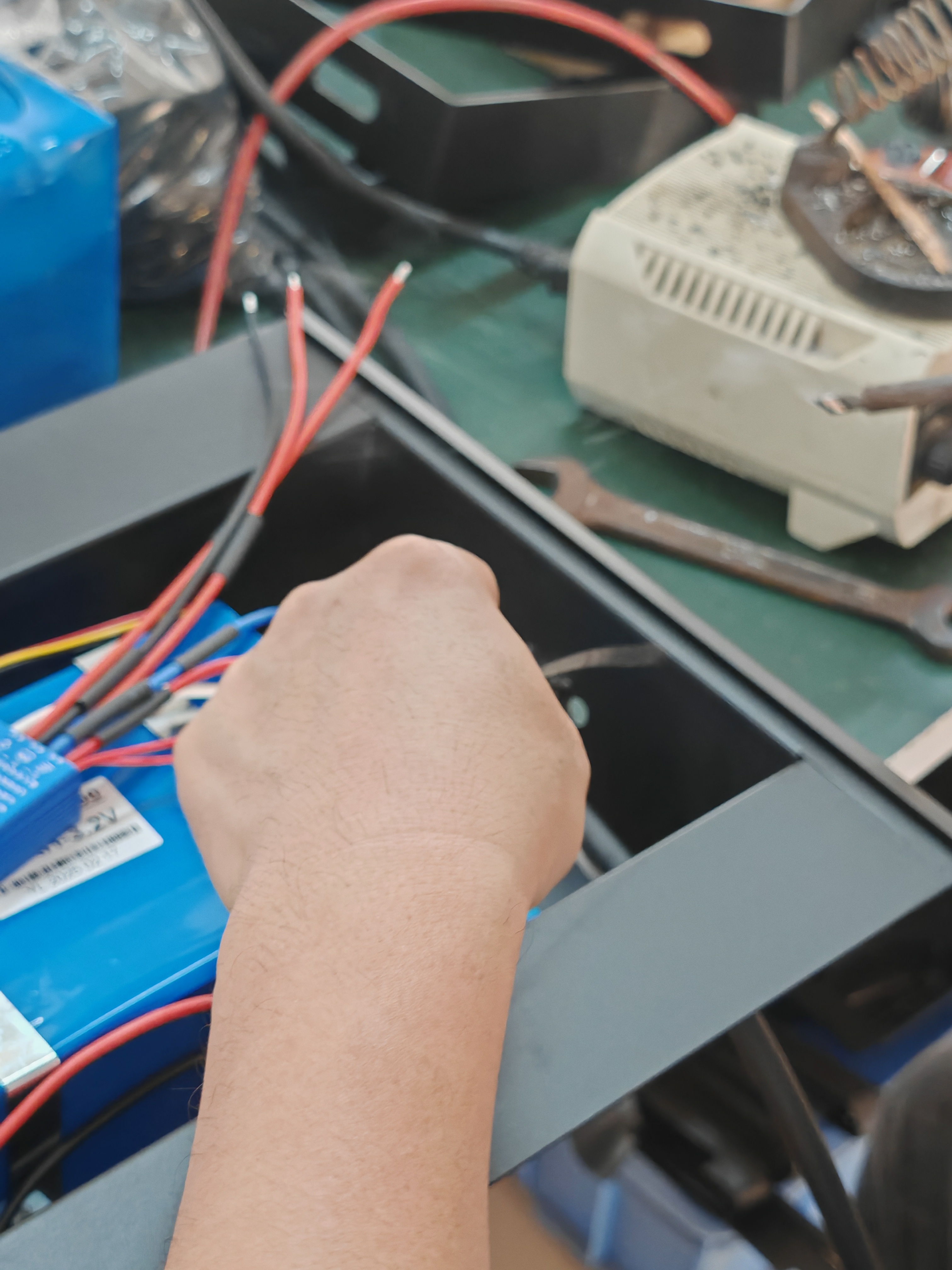

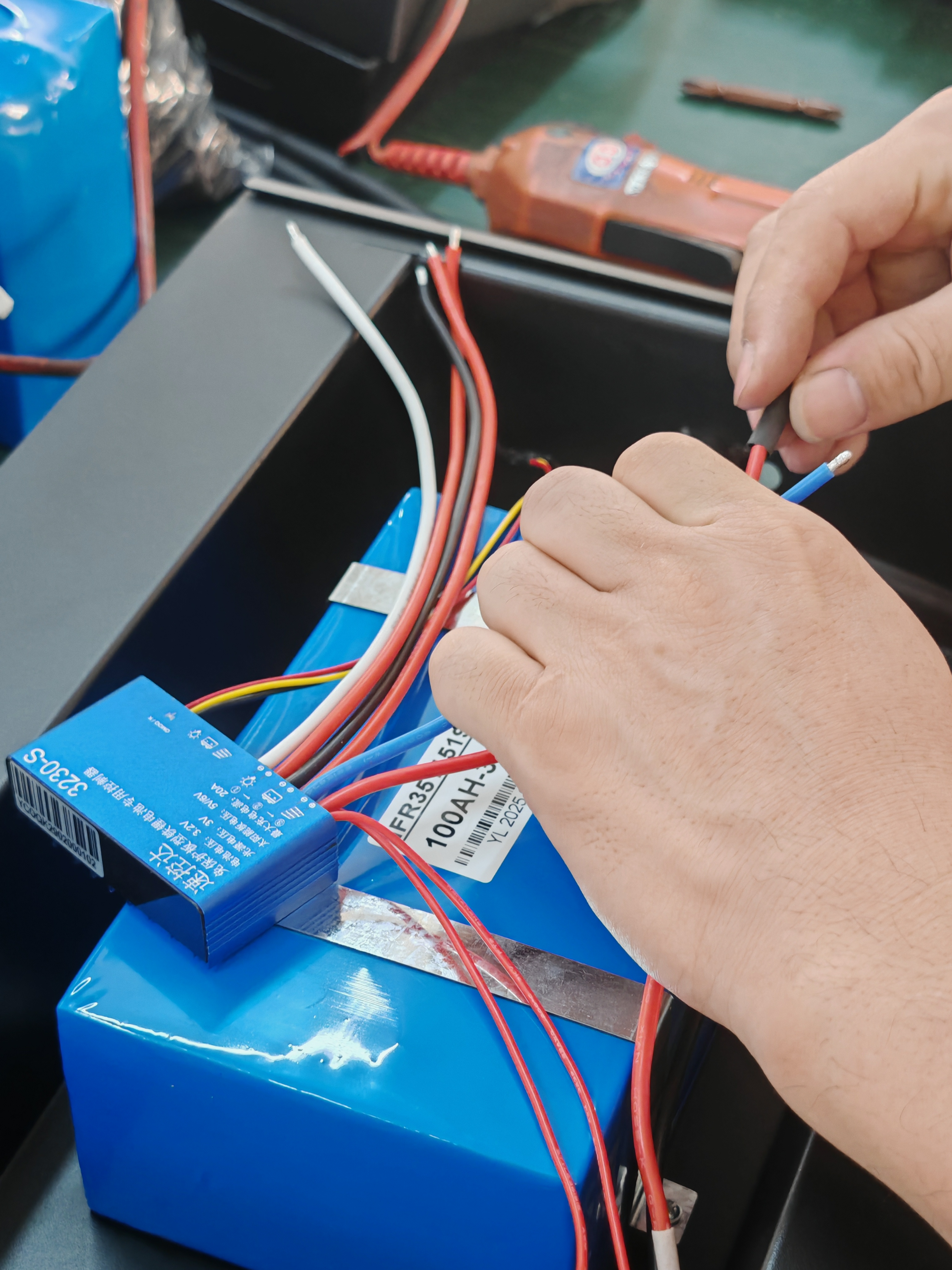

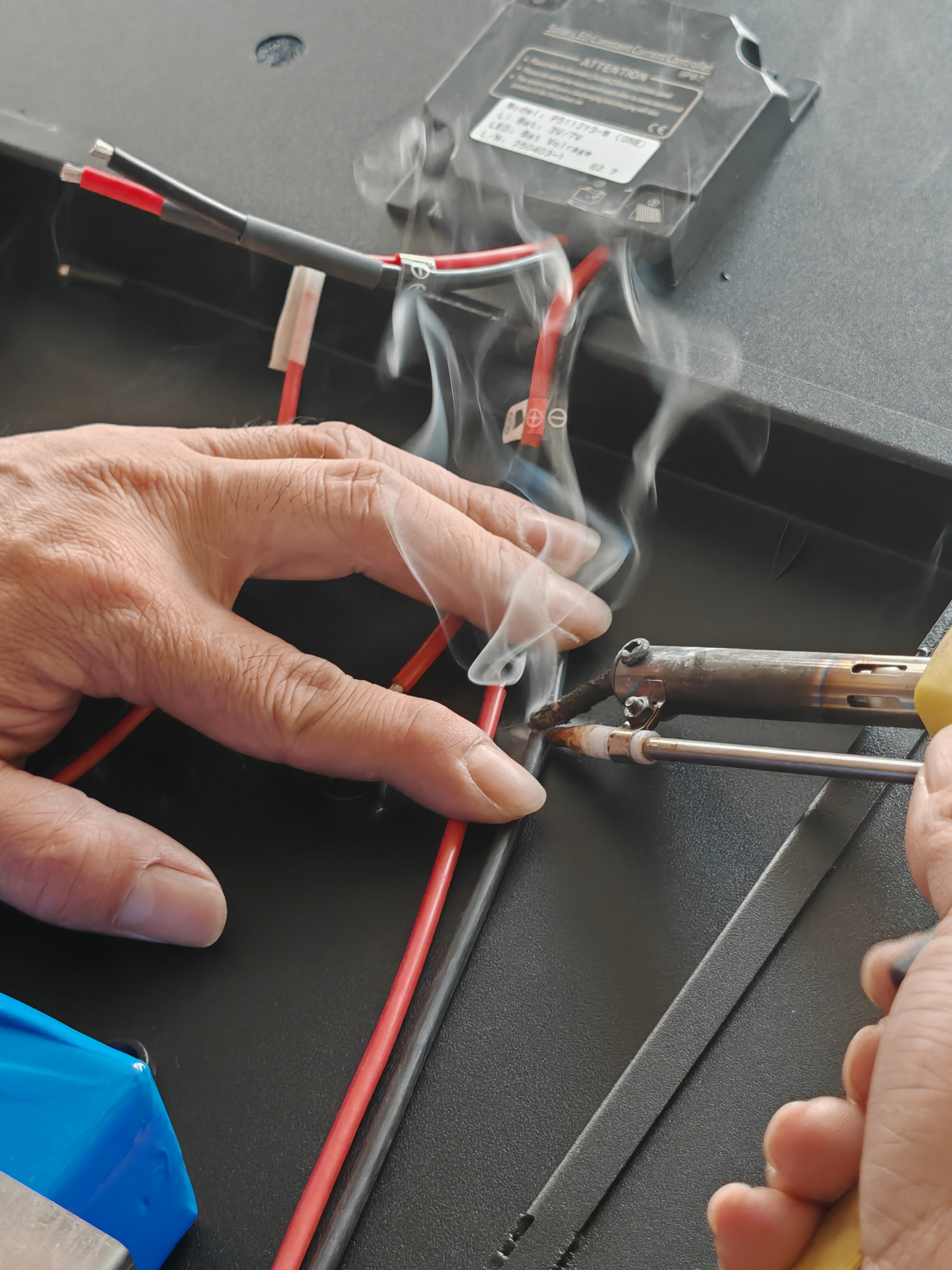

Factory pictures
